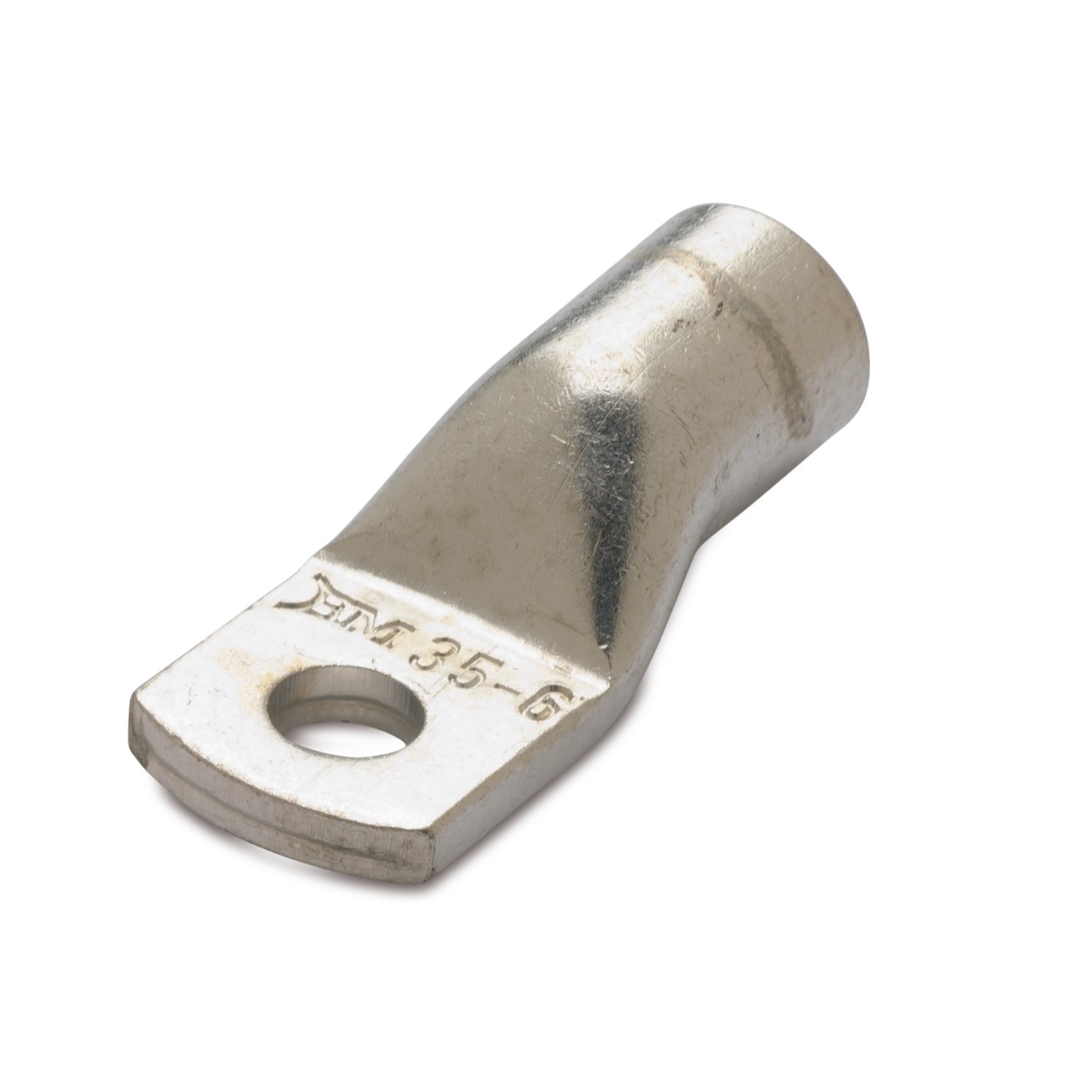

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · SMALL PLATE

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · CLASS 6

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · LONG BARREL

Product Category	terminal lugs
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Applications	the reduced width of the palm allows connection to equipment with lugs of dimensions not suitable for standard terminals.
Inspection hole	no
According to std.	UL 486 A-B
Etim 9	EC001051
cid	11TA04F

file n° E 137735, • No UL

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
017313	35	(2)	6	#12	11	15	39	16	8	7	11,5	8,5	6,5	25/25
018313	50	(1/0)	6	#12	12	15	41	18	8	7	13	10	6,5	25/25
018373•	50	(1/0)	8	5/16"	12	18,7	49,5	18	11	11	13	10	8,4	25/25
018433	50	(1/0)	10	3/8"	12	18,7	49,5	18	11	11	13	10	10,5	25/25
019313•	70	(2/0)	6	#12	14	17	46	20	9,5	6,5	15	12	6,5	25/25
019433•	70	(2/0)	10	3/8"	14	19	52	21	13	10	15	12	10,5	25/25
031373•	95	(3/0)	8	5/16"	16	19	54	24	12	8	17,5	13,8	8,5	25/25
031433•	95	(3/0)	10	3/8"	16	19	58	22	13	10	17,5	13,8	10,5	25/25
032373	120	(4/0)	8	5/16"	18	19	61	22	12	9	19,5	15,5	8,5	25/25
032433	120	(4/0)	10	3/8"	18	19	61	22	12	9	19,5	15,5	10,5	25/25
033373	150	(300)	8	5/16"	20	19	70	30	17	9	21	17	8,4	25/25
033433	150	(300)	10	3/8"	20	19	70	30	17	9	21	17	10,5	25/25
034493	185	(400)	12	1/2"	22	31	82	32	17	14	24	19	13	25/25
035433•	240	(500)	10	3/8"	25	31,5	90	39	17	14	27	21,5	10,5	25/25
035493	240	(500)	12	1/2"	25	31,5	90	39	17	14	27	21,5	13	25/25
