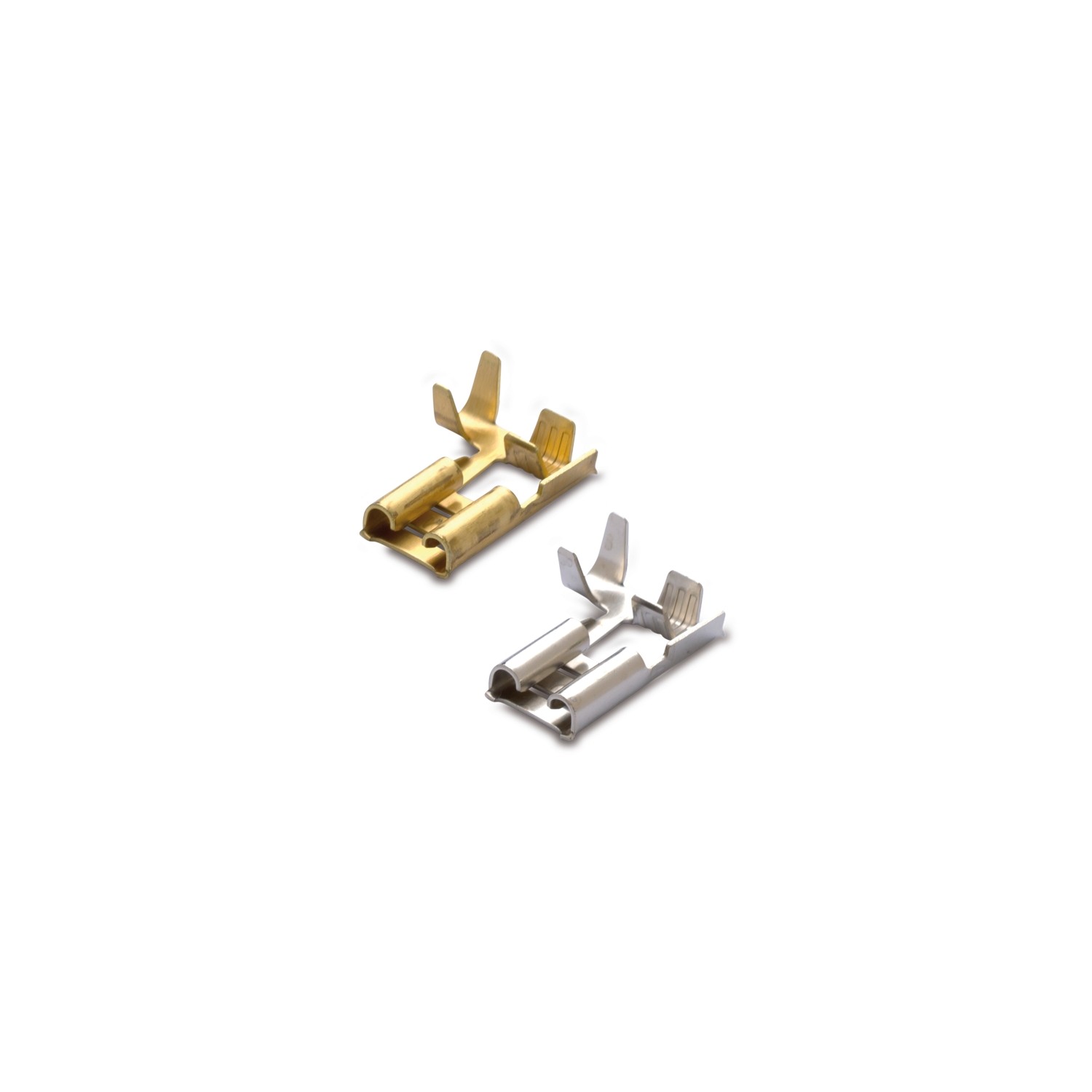

QUICK-CONNECT TERMINALS · UNINSULATED · FEMALE · FLAG TYPE

Product was successfully added to your shopping cart.

QUICK-CONNECT TERMINALS · UNINSULATED · FEMALE · FLAG TYPE

Product Category	quick-connect terminals
Terminal material	tinned/passivated brass
According to std.	EN 61210: 2010-11
Operating temperature	da -40 °C a +110 °C
Etim 9	EC000516
cid	11TD01B

Images with
dimensions

Coded items

Item Code	Material	Execution	Section [mm²]	Section [AWG]	For male [mm]	For male ["]	W1 [mm]	L1 [mm]	L2 [mm]		Quantity per Wishlist
01195	passivated brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	200/2000
01196	tinned brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	200/2000
02195	passivated brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	5500/5500
02196	tinned brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	5500/5500
01295	passivated brass	loose	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	100/1000
01296	tinned brass	loose	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	100/1000
02295	passivated brass	reel	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	5000/5000
02296	tinned brass	reel	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	6,6	15	7,6	5000/5000
