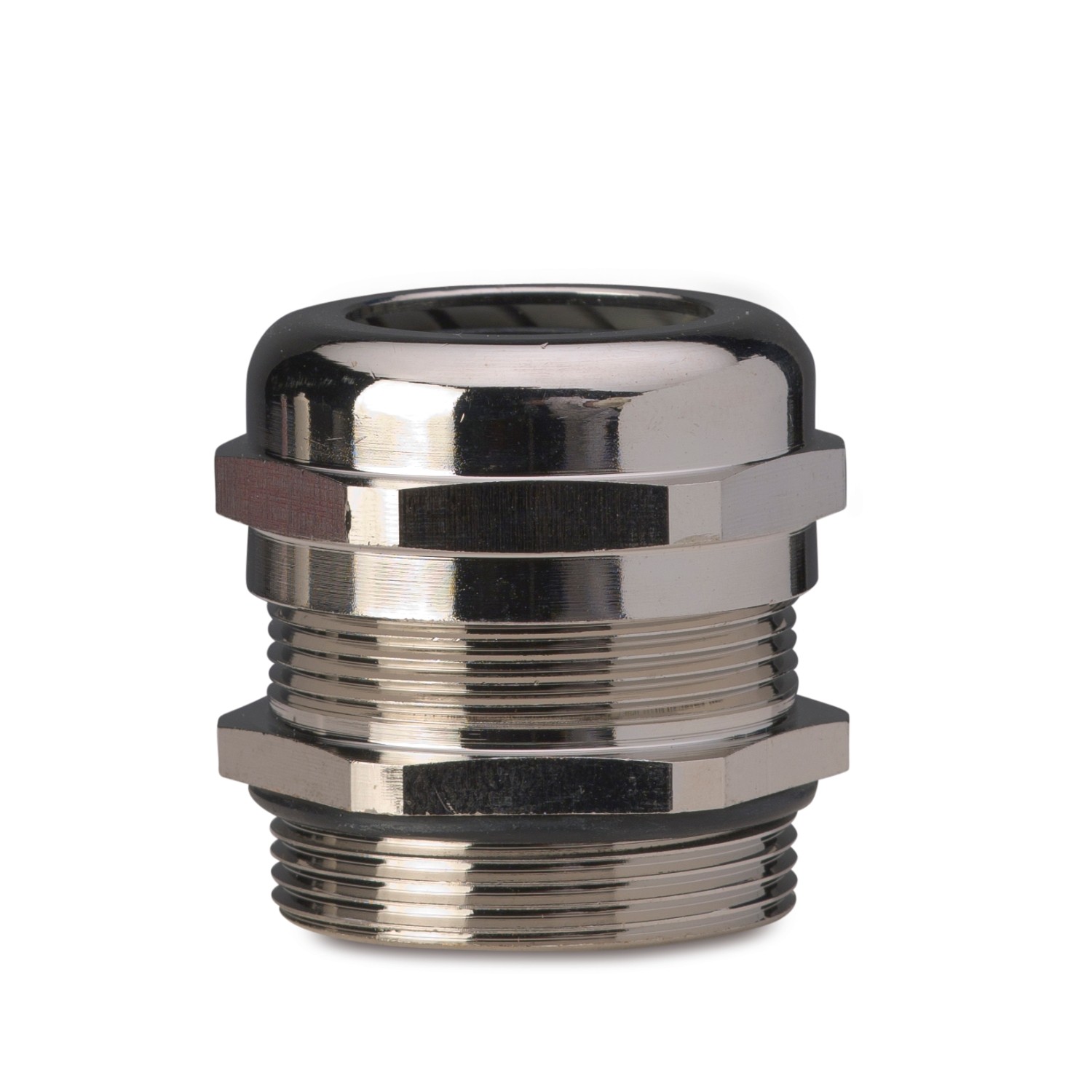

BRASS CABLE GLANDS · PG THREAD · IP68 · STANDARD

Product was successfully added to your shopping cart.

BRASS CABLE GLANDS · PG THREAD · IP68 · STANDARD

BRASS CABLE GLANDS · PG THREAD · IP68 · WITH LONG THREAD

Product Category	brass cable glands
Material	nickel-plated brass
Operating temperature	from -40 °C to +100 °C
Inner gasket and o-ring	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
Assembly	do not remove or move the gasket; tighten on a flat and smooth surface.
Cage in	polyamide (PA 6.6)
Etim 9	EC000441
cid	22PB03A

Images with
dimensions

Coded items

Item Code	PG thread size (DIN40430)	Ø cable [mm]	L [mm]	E wrench [nut]	E1 wrench [locknut]		Quantity per Wishlist
2507	PG 7	3 - 6,5	6	14	14	100/100
2509	PG 9	4 - 8	7	18	18	100/100
2511	PG 11	5 - 10	7	20	20	100/100
2513	PG 13.5	6 - 12	8	22	22	100/100
2516	PG 16	10 - 14	8	24	24	100/100
2521	PG 21	13 - 18	9	30	30	50/50
2529	PG 29	18 - 25	10	40	40	25/25
2536	PG 36	25 - 32	10	50	50	12/12
2542	PG 42	32 - 38	12	58	58	10/10
2548	PG 48	37 - 44	12	64	64	7/7
