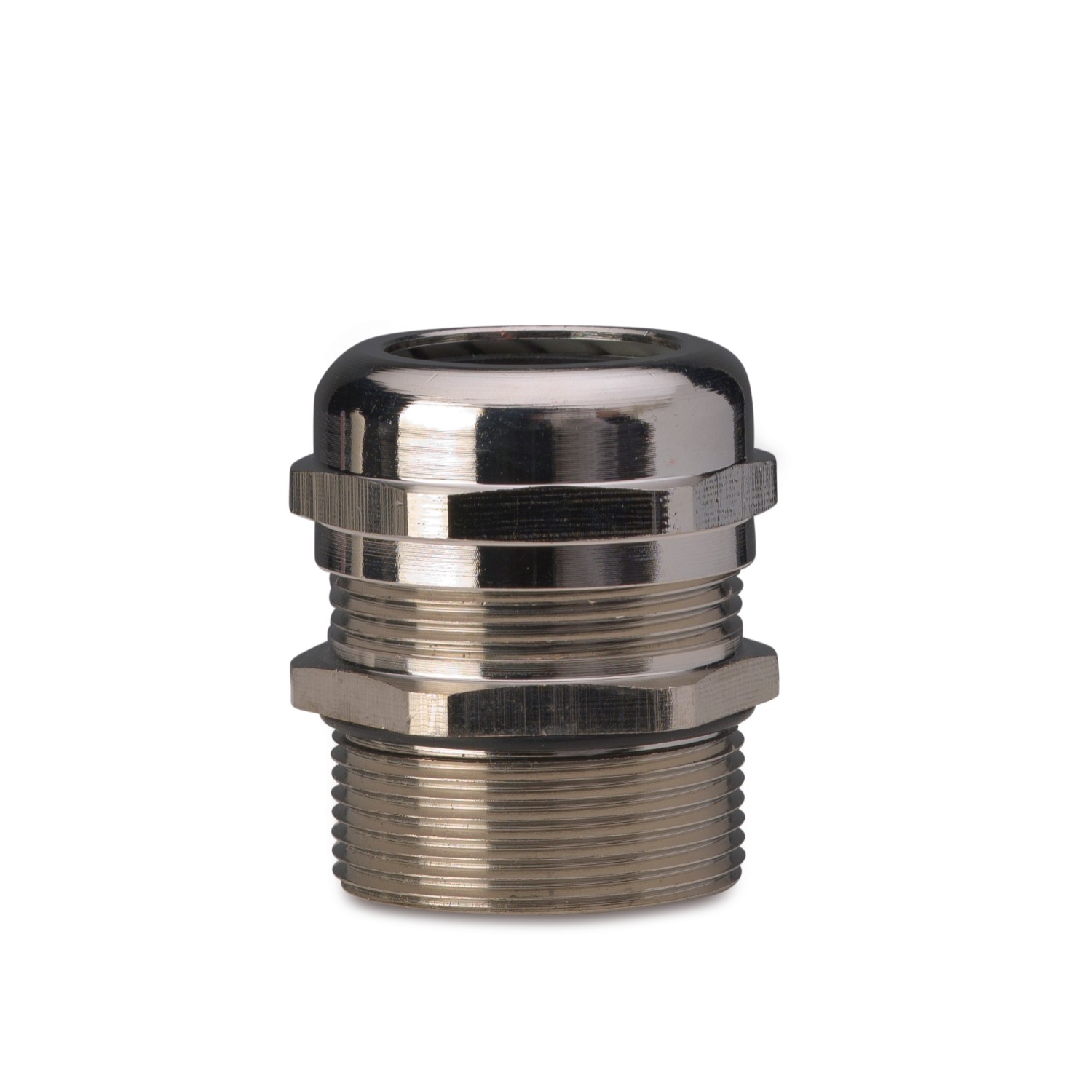

BRASS CABLE GLANDS · PG THREAD · IP68 · WITH LONG THREAD

Product was successfully added to your shopping cart.

BRASS CABLE GLANDS · PG THREAD · IP68 · WITH LONG THREAD

BRASS CABLE GLANDS · PG THREAD · IP68 · STANDARD

BRASS CABLE GLANDS · PG THREAD · IP54 · STANDARD

Product Category	brass cable glands
Material	nickel-plated brass
Operating temperature	from -40 °C to +100 °C
Inner gasket and o-ring	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
Assembly	do not remove or move the gasket; tighten on a flat and smooth surface.
Cage in	polyamide (PA 6.6)
Etim 9	EC000441
cid	22PB03B

Images with
dimensions

Coded items

Item Code	PG thread size (DIN40430)	Ø cable [mm]	L [mm]	E wrench [nut]	E1 wrench [locknut]		Quantity per Wishlist
2507L	PG 7	3 - 6,5	10	14	14	25/25
2509L	PG 9	4 - 8	10	18	18	25/25
2511L	PG 11	5 - 10	10	20	20	25/25
2513L	PG 13.5	6 - 12	10	22	22	25/25
2516L	PG 16	10 - 14	10	24	24	25/25
2521L	PG 21	13 - 18	12	30	30	25/25
2529L	PG 29	18 - 25	12	40	40	10/10
2536L	PG 36	25 - 32	15	50	50	5/5
2542L	PG 42	32 - 38	15	58	58	5/5
2548L	PG 48	37 - 44	15	64	64	5/5

We design, manufacture, distribute connection elements and products for electrical installation, since 1958.
