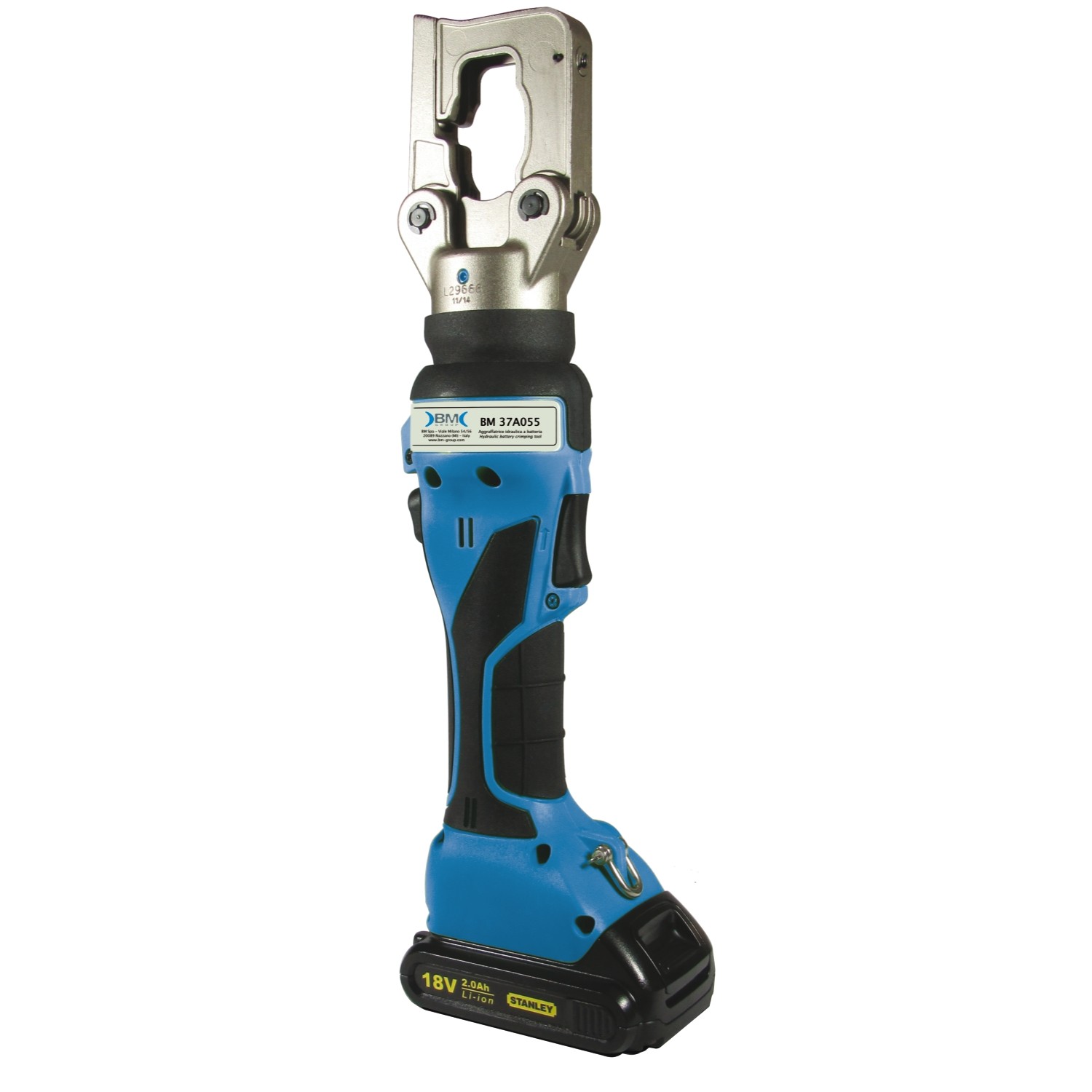

CRIMPING TOOL · BATTERY POWERED · IN-LINE · 55KN · DIES SERIES 83

CRIMPING TOOL · HYDRAULIC · MANUAL · 130KN · DIES SERIES 86, SERIES 84

CRIMPING TOOL · BATTERY POWERED · 62KN · DIES SERIES 85

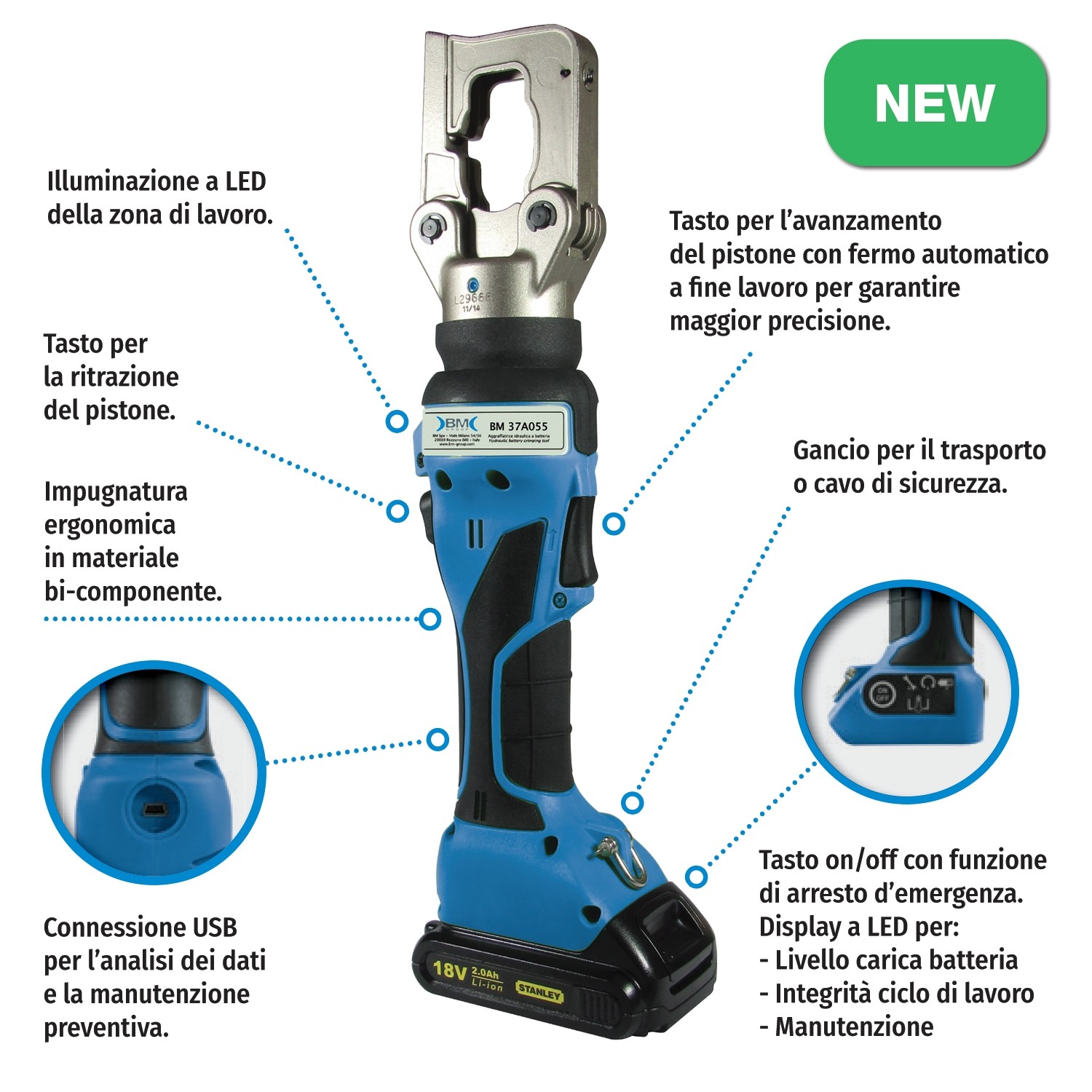

• LED lighting of the workplace
• working trigger with motor stop function at the stroke
• release trigger
• ergonomic handles in bi-component plastic
• handling ring for transportation (strap) or safety cable
• USB connection for data analysis & preventive maintenance
• on/off button with emergency saving function
• LED display panel for battery charge level, cycle conformity, maintenance
• electronic protection in case of overpressure
• quick motor stop function at crimping end for high user safety
• energy saving function for switching off the tool
• crimping speed improved by a high performance motor
• possibility to use 5.0Ah battery for an extended use

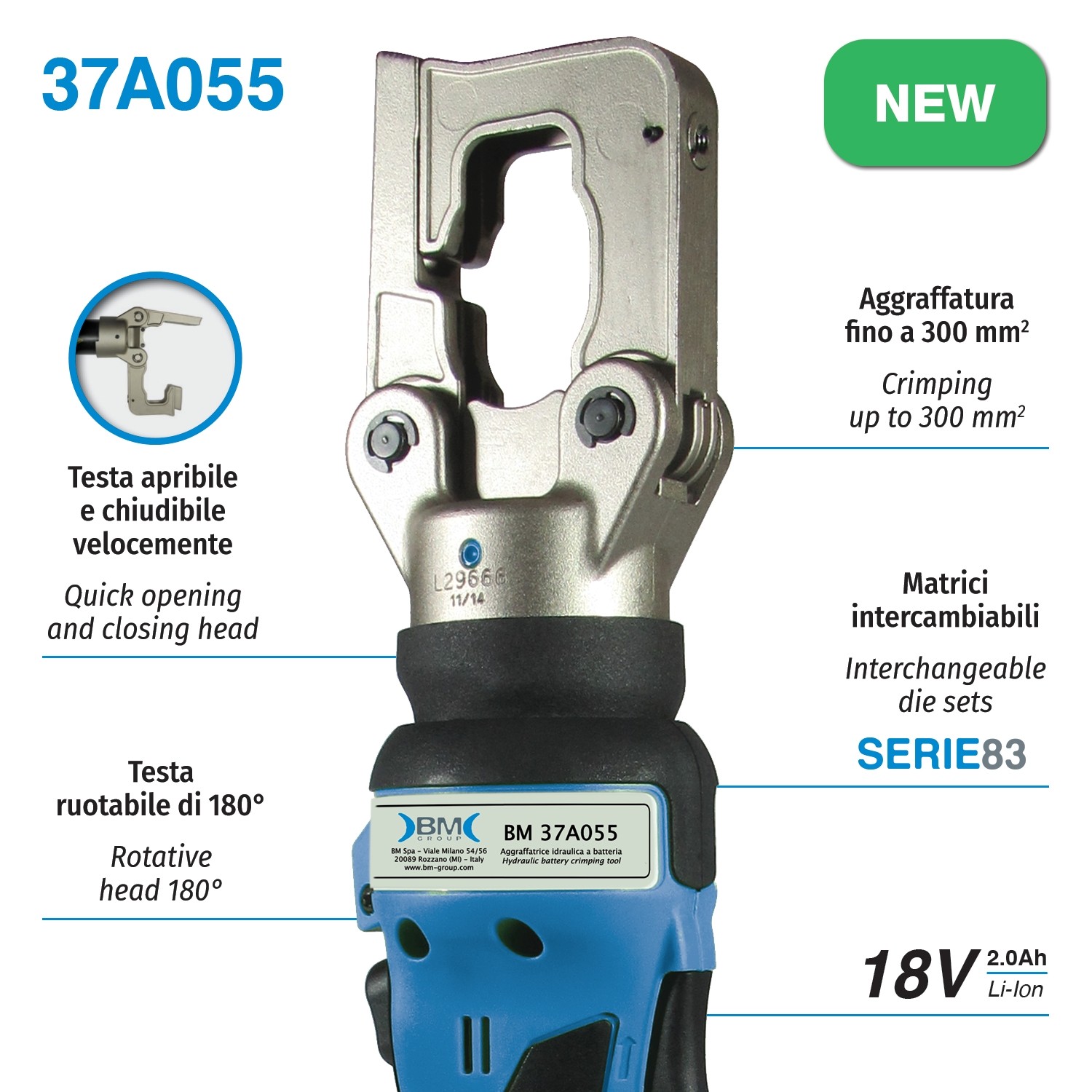

• quick opening & closing head
• dies retention spheres
• hexagonal crimping up to 300 mm²
• interchangeable die set
• rotative head 180°

Product Category	hydraulic crimping tool
Bat	9 mm
Crimping force at die level	55 kN
Crimping time	from 3 to 5 s
Dies	83 series
Battery	Stanley, Lithium, 18V 2.0Ah
Battery capacity	about 220 crimps (CU 185 mm²)
USB socket	Mini
Field of use	terminals • Class 1,2,5 conductors from 10 to 300 mm² • Class 6 conductors from 10 to 185 mm² • DIN standard from 10 to 240 mm² • NFC standard from 4 to 240 mm² • Medium voltage from 25 to 300 mm² • DIN Aluminum and bimetallic from 16 to 185 mm² • Insulated from 10 to 95 mm² • C shunt from 10 to 25 mm²
Etim 9	EC000168
cid	31AA12A

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist
37A055	Kit including: • crimping tool 55 kN • Rechargeable battery Stansley 18V li-Ion 2.0Ah • Stanley battery charger 220V AC powered • carrying case	128	75	390	2,9	471x415x116 (V)	VA
37A055A1	Kit including: • crimping tool 55 kN • die set for uninsulated terminals from 10 to 240 mm² • Rechargeable battery Stansley 18V li-Ion 2.0Ah • Stanley battery charger 220V AC powered • carrying case	128	75	390	2,9	471x415x116 (V)	VA
