CRIMPING TOOL · HYDRAULIC · MANUAL · 60KN · DIES SERIES 83

CRIMPING TOOL · HYDRAULIC · MANUAL · 50KN · DIES SERIES 82

HYDRAULIC · MANUAL · 120 kN · DIES SERIES 84

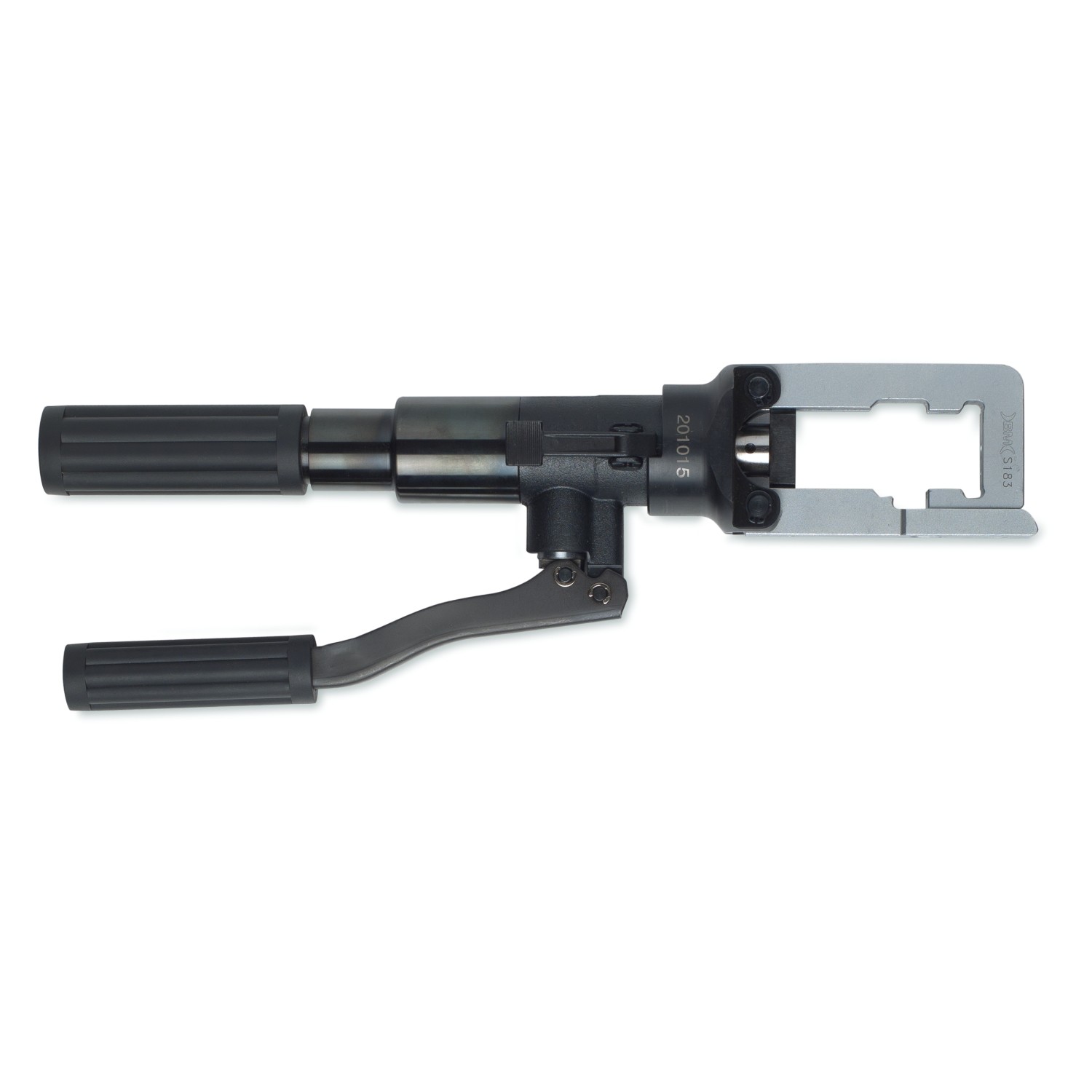

• lateral snap opening for quick and easy die positioning
• 180° swivel head for easy crimping in narrow places
• two pistons advancement speeds: one for quickly matching die and terminal, the other for crimping
• automatic end-of-work release device to guarantee the crimping quality
• release lever device to open the tool at the end of operation and in case of a wrong maneuver

Product Category	hydraulic crimping tool
Crimping force at die level	60 kN
Dies	83 series
Field of use	terminals • uninsulated from 10 to 300 mm² • uninsulated class 6 from 10 to 185 mm² • DIN standard from 10 to 240 mm² • NFC standard from 4 to 240 mm² • medium voltage from 25 to 300 mm² • aluminum from 16 to 185 mm² • bimetallic from 16 to 150 mm² • bimetallic DIN from 16 to 185 mm² • insulated from 10 to 95 mm² • C shunt from 10 to 95 mm² • end-sleeve from 50 to 150 mm²
Etim 9	EC000168
cid	31AA11P

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist

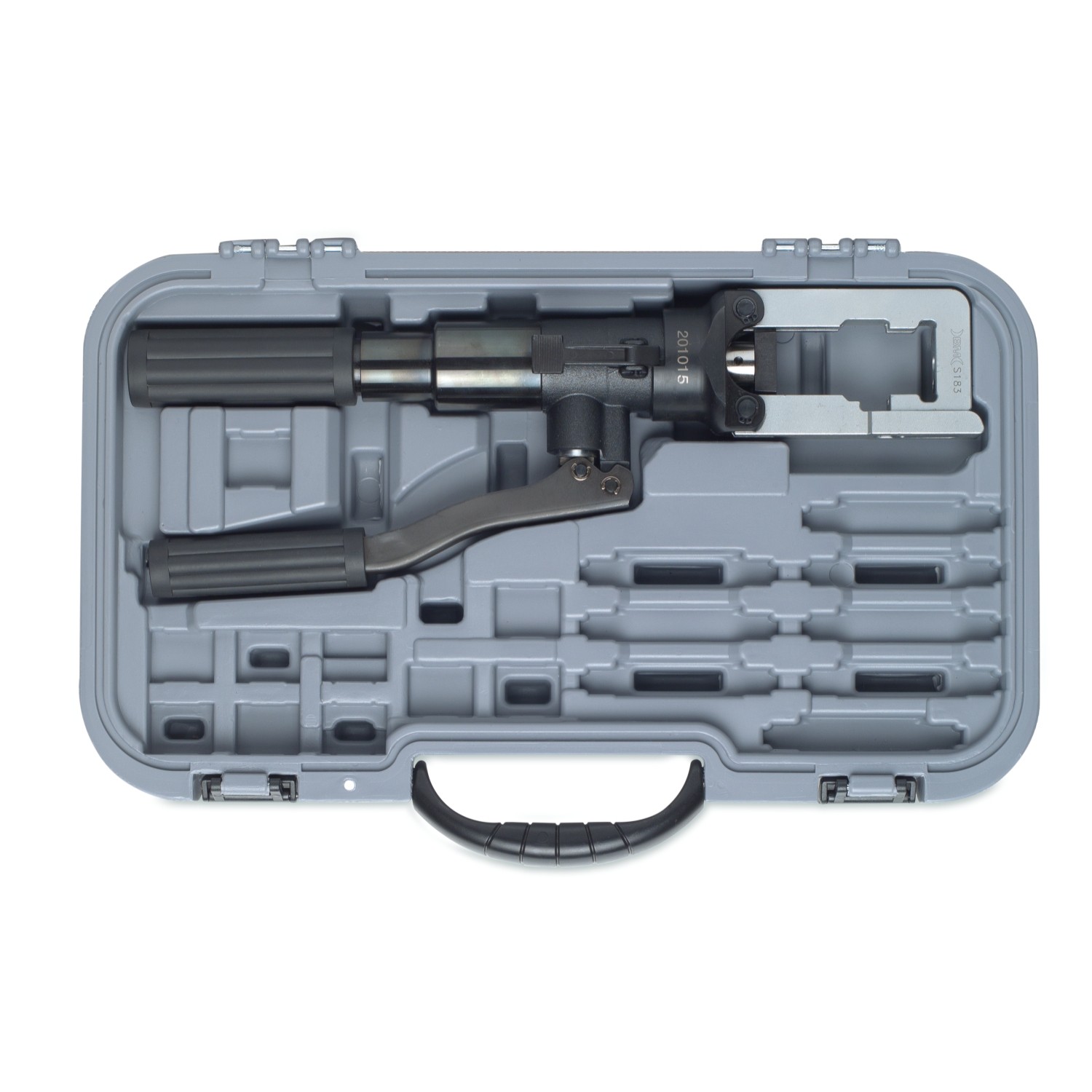

1833	60 kN hand hydraulic press with carrying case	410	140	70	3,1	450x280x80	VA
1833A1	kit including • 60 kN press • die set for uninsulated terminals from 10 to 240 mm² • die set for C shunts from 16 to 95 mm² • carrying case	410	140	70	3,1	450x280x80	VA
