• ”C” opening for easy joint crimping (the maximum conductor section depends on cable insulation thickness)
• bigger “C” opening in 184PL version to crimp big section joints
• 180° swivel head for easy crimping in narrow places
• two piston advancement speeds: one for quickly matching die and terminal, the other for crimping
• automatic end-of-work release device to guarantee crimping quality
• release device activated by a rotation of the handle to open the tool at the end of operation and in case of a wrong manoeuvre

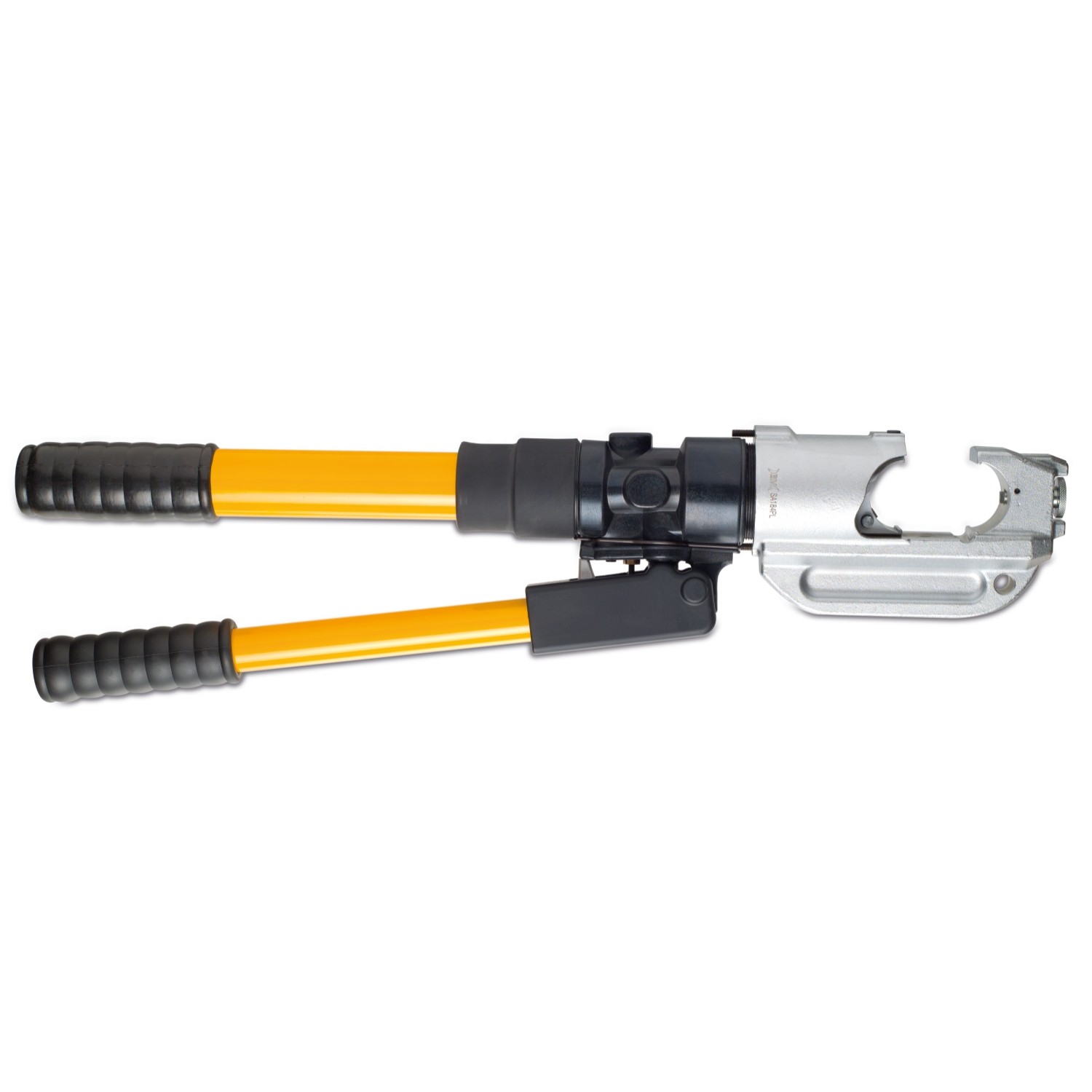

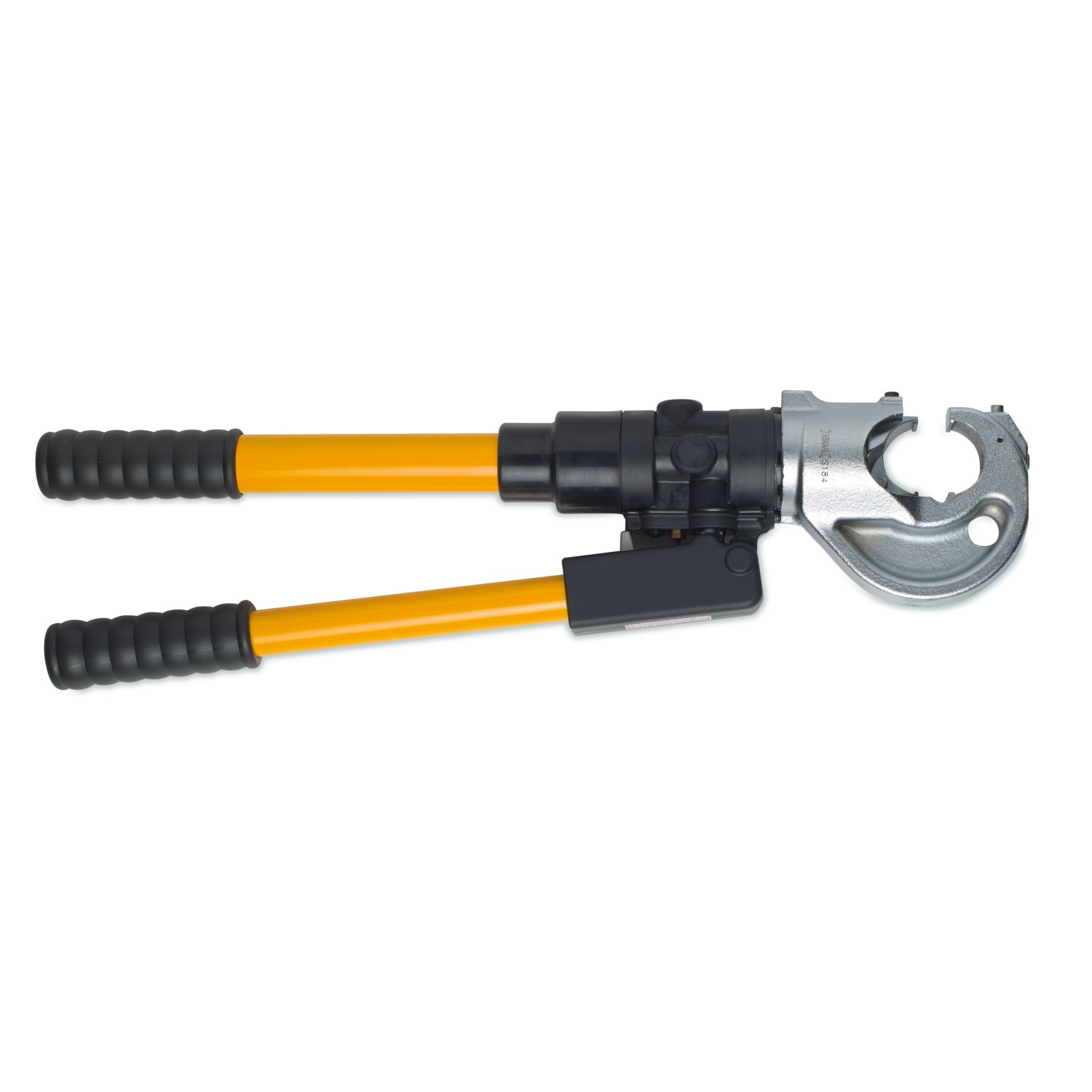

| Product Category | hydraulic crimping tool |
| Crimping force at die level | 120 kN |
| Dies | 84 series |
| Field of use | terminals
• uninsulated from 10 to 400 mm² (300 mm² for DIN)
• uninsulated class 6 from 10 to 185 mm²
• medium voltage from 25 to 400 mm²
• aluminum from 16 to 240 mm²
• bimetallic from 16 to 300 mm²
• bimetallic DIN from 16 to 300 mm²
• insulated from 10 to 240 mm²
• C shunt from 10 to 150 mm²
• end-sleeve from 50 to 150 mm² |
| Etim 9 | EC000168 |
| cid | 31AA11N |
