CRIMPING HEADSTOCK · FOR PUMPS · UP TO 240 mm² (SERIES 83)

ELECTRO HYDRAULIC PUMP

CRIMPING HEADSTOCK · FOR PUMPS · UP TO 400 mm² (SERIES 84)

• lateral snap opening for quick and easy die positioning
• with male quick coupling fitting with automatic locking
• for operation it must be combined with a pump with an operating pressure of 700 bar

Product Category	heads for pumps up to 240 mm²
Crimping force at die level	60 kN
Dies	83 series
Field of use	terminals • uninsulated from 10 to 300 mm² • uninsulated class 6 from 10 to 185 mm² • DIN standard from 10 to 240 mm² • NFC standard from 4 to 240 mm² • medium voltage from 25 to 300 mm² • aluminum from 16 to 185 mm² • bimetallic from 16 to 150 mm² • bimetallic DIN from 16 to 185 mm² • insulated from 10 to 95 mm² • C shunt from 10 to 95 mm² • end-sleeve from 50 to 150 mm²
Etim 9	EC000168
cid	31AA14F

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist

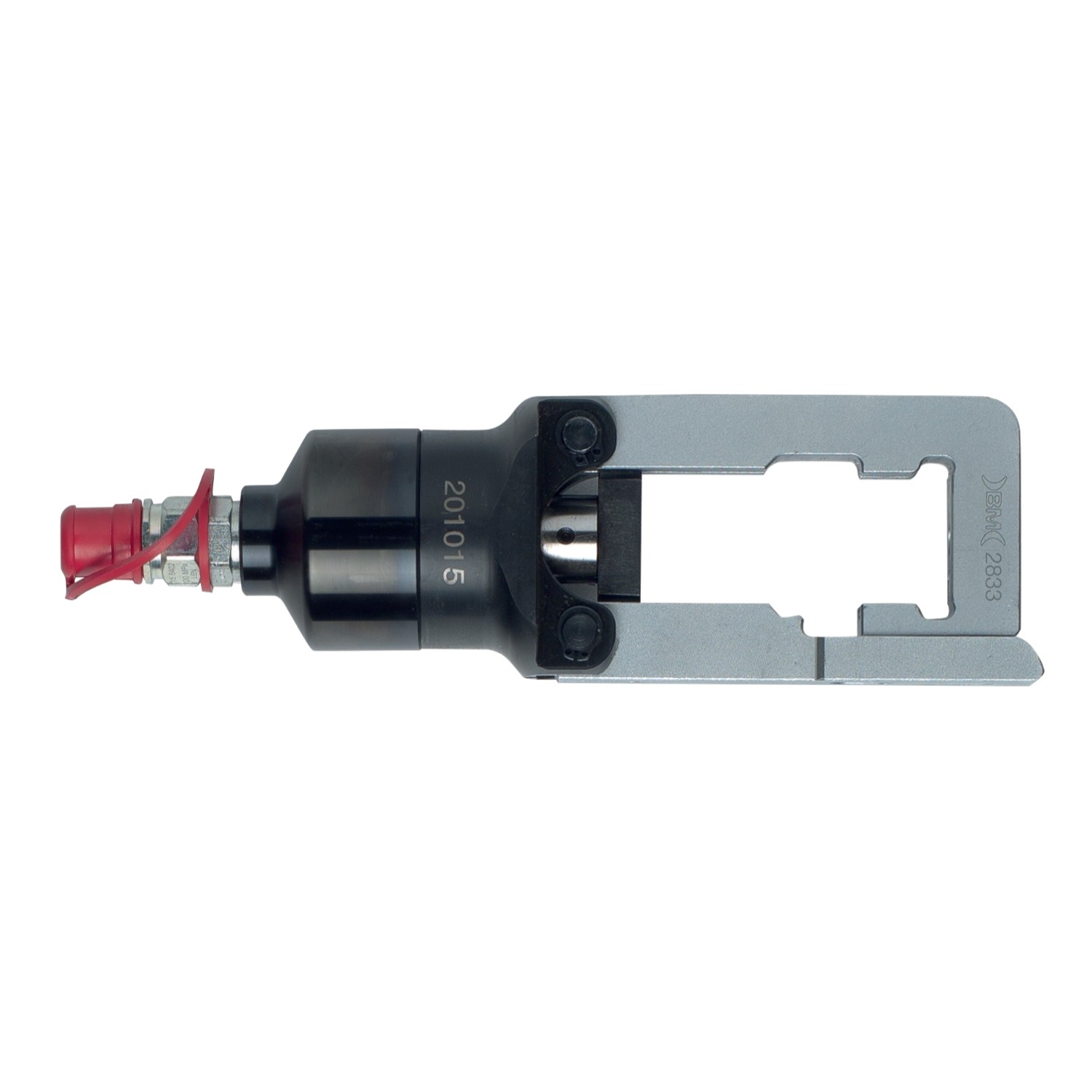

2833	60 kN crimping headstock for pump	230	70	55	1,76	295x155x110	VA
