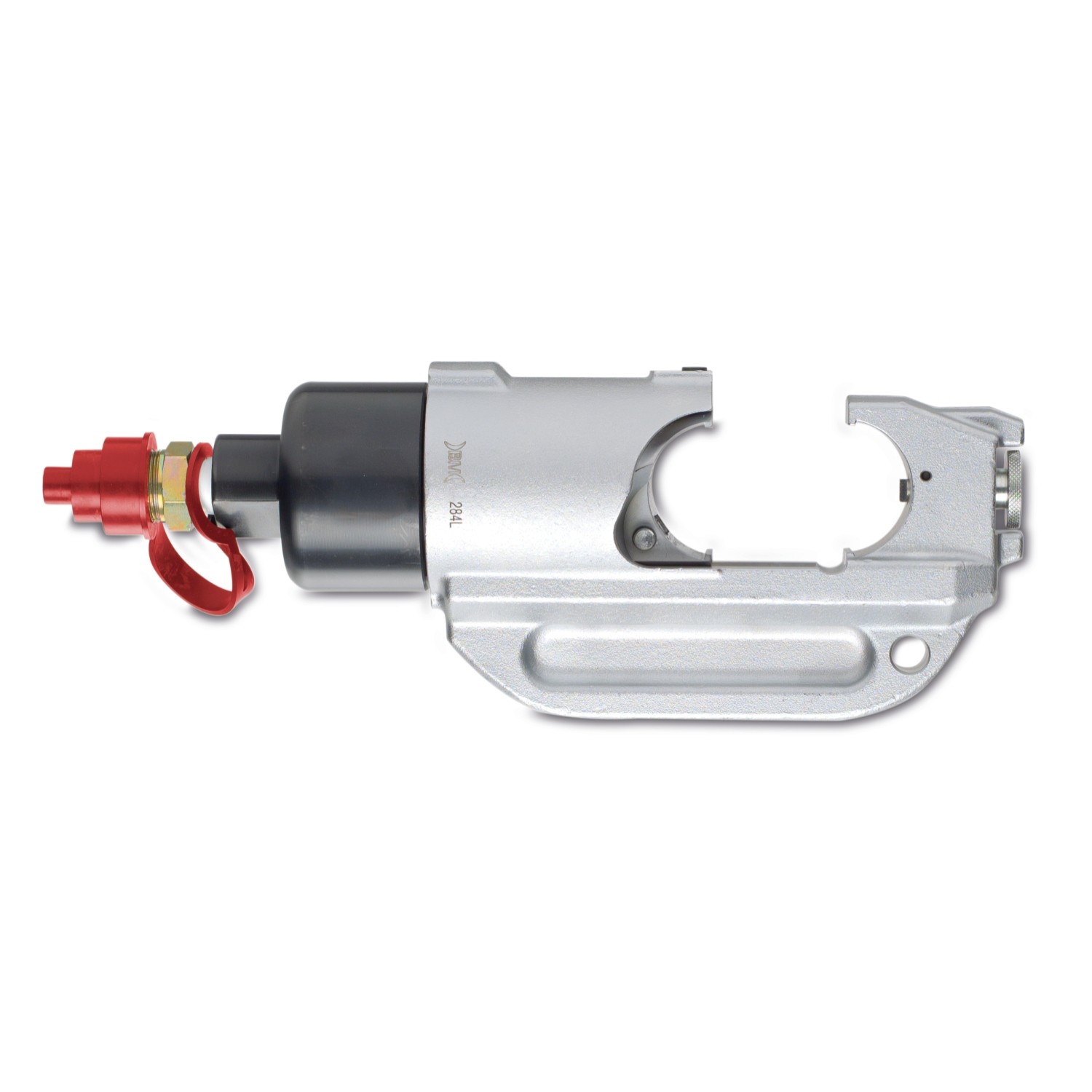

CRIMPING HEADSTOCK · FOR PUMPS · UP TO 400 mm² (SERIES 86, SERIES 84)

• “C” opening for easy joint crimping (the maximum conductor section depends on cable insulation thickness)
• bigger “C” opening in 284L version to crimp big section joints
• with male quick coupling fitting with automatic locking
• for operation it must be combined a pump with an operating pressure of 700 bar

Product Category	heads for pumps up to 400 mm²
Crimping force at die level	120 kN
Dies	84 series
Field of use	terminals • uninsulated from 10 to 400 mm² (300 mm² for DIN) • uninsulated class 6 from 10 to 185 mm² • medium voltage from 25 to 400 mm² • aluminum from 16 to 240 mm² • bimetallic from 16 to 300 mm² • bimetallic DIN from 16 to 300 mm² • insulated from 10 to 240 mm² • C shunt from 10 to 150 mm² • end-sleeve from 50 to 150 mm²
Etim 9	EC000168
cid	31AA14B

Coded items

Item Code	Description	Max “C” opening [mm]	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist
284	120 kN crimping headstock for pump	30	245	115	68	4	440x270x130	VA
284L	120 kN crimping headstock for pump	42	250	130	70	5,3	440x270x130	VA
