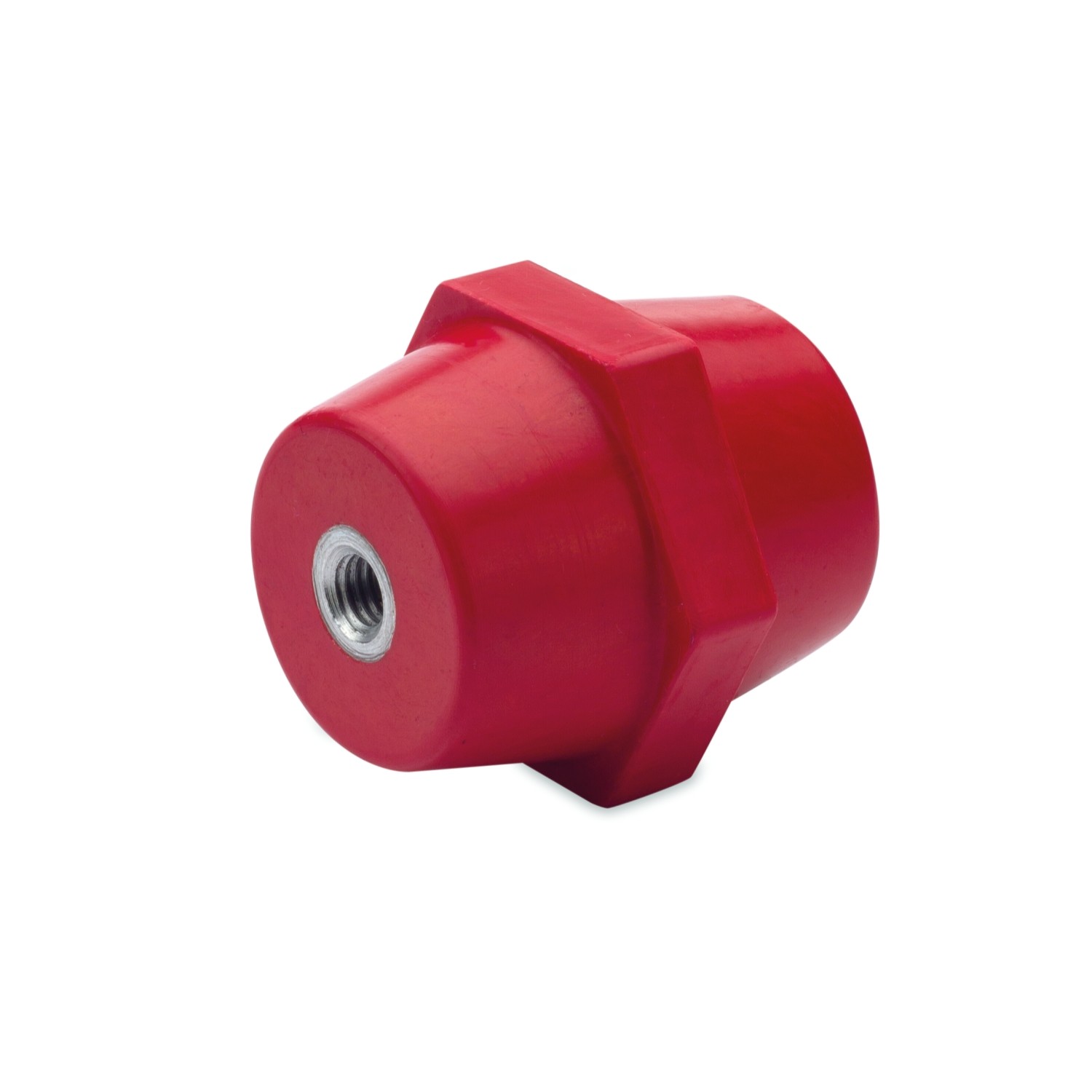

POLYESTER INSULATORS (L.V.)

Insulation material	red polyester and fiberglass
Insert material	galvanized steel threaded according to ISO standards
Insulation self-extinguishing	UL 94 V0
Operating temperature	from -40 °C to +135 °C
Applications	support of threaded and drilled copper bars
Etim 9	EC002357
cid	25QD01A

Images with
dimensions

Item Code	L1 [mm]	D1	L2 [mm]	E wrench [mm]	D2 [mm]	Tightening torque [Nm]	AC Voltage [kV]	DC Voltage [kV]	Tensile strength [daN]	Bending strength [daN]	
QHEP01604	16	M4	3,5	14	11	1,5	0,6	0,8	80	25	50/50
QHEP02004	20	M4	5	18	14	2,5	0,8	1,1	182	65	25/25
QHEP02006	20	M6	5	18	14	5	0,8	1,1	195	75	25/25
QHEP02505	25	M5	7	21	16	5	1	1,4	350	92	20/20
QHEP02506	25	M6	7	25	22	6	1	1,4	540	190	20/20
QHEP03006	30	M6	9	32	24	6	1,2	1,6	532	154	10/10
QHEP03008	30	M8	9	32	25	15	1,2	1,6	796	240	10/10
QHEP03506	35	M6	12	32	26	6	1,4	1,9	620	244	10/10
QHEP03508	35	M8	12	32	26	15	1,4	1,9	670	250	10/10
QHEP03510	35	M10	12	32	26	20	1,4	1,9	805	190	10/10
QHEP04006	40	M6	12	38	30	6	1,6	2,2	870	280	10/10
QHEP04008	40	M8	12	39	31	20	1,6	2,2	860	340	10/10
QHEP04010	40	M10	12	38	30	25	1,6	2,2	1054	345	10/10
QHEP04506	45	M6	12	40	32	10	1,8	2,5	990	310	10/10
QHEP04508	45	M8	12	40	32	20	1,8	2,5	1100	345	10/10
QHEP04510	45	M10	12	40	32	30	1,8	2,5	1220	300	10/10
QHEP05006	50	M6	12	46	35	10	2	2,8	1120	300	10/10
QHEP05008	50	M8	17	46	35	20	2	2,8	1500	420	10/10
QHEP05010	50	M10	17	46	35	30	2	2,8	1550	500	10/10
QHEP05012	50	M12	17	46	35	50	2	2,8	1511	472	10/10
QHEP06008	60	M8	17	50	38	20	2,4	3,3	1200	253	4/4
QHEP06010	60	M10	17	50	38	30	2,4	3,3	1570	410	4/4
QHEP06012	60	M12	17	50	38	50	2,4	3,3	1640	520	4/4
QHEP07010	70	M10	22	55	41	30	2,8	3,9	1720	490	4/4
QHEP07012	70	M12	22	55	41	50	2,8	3,9	1800	500	4/4
QHEP07512	75	M12	22	53	42	50	3	4,2	1840	540	4/4
