PDF documents
Images with

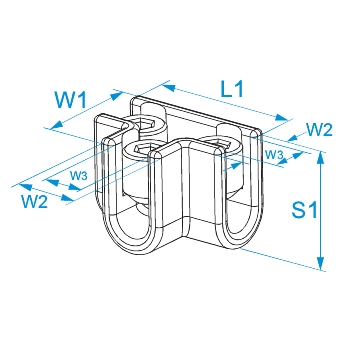

dimensions
dimensions
| Item Code |
Section[mm²] | Cable diameter[mm] | Screw | W1[mm] | W2[mm] | W3[mm] | L1[mm] | S1[mm] | | Quantity per Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|
| 2350 | 4 ÷ 16 | 2 ÷ 4,5 | M7 | 16,75 | 10,75 | 5 | 23 | 15,5 | 100/100 | |
| 2351 | 10 ÷ 25 | 3 ÷ 6 | M10 | 22 | 13,75 | 7 | 30 | 20 | 100/100 | |
| 2352 | 25 ÷ 35 | 7 ÷ 8 | M12 | 31,5 | 17 | 8,15 | 42,5 | 22,5 | 50/50 | |
| 2353 | 35 ÷ 70 | 9 ÷ 10 | M14 | 36 | 19,5 | 10 | 52 | 25,5 | 25/50 | |
| 2354 | 70 ÷ 95 | 11 ÷ 13 | M20 | 50 | 27 | 13 | 71 | 30 | 10/10 |
