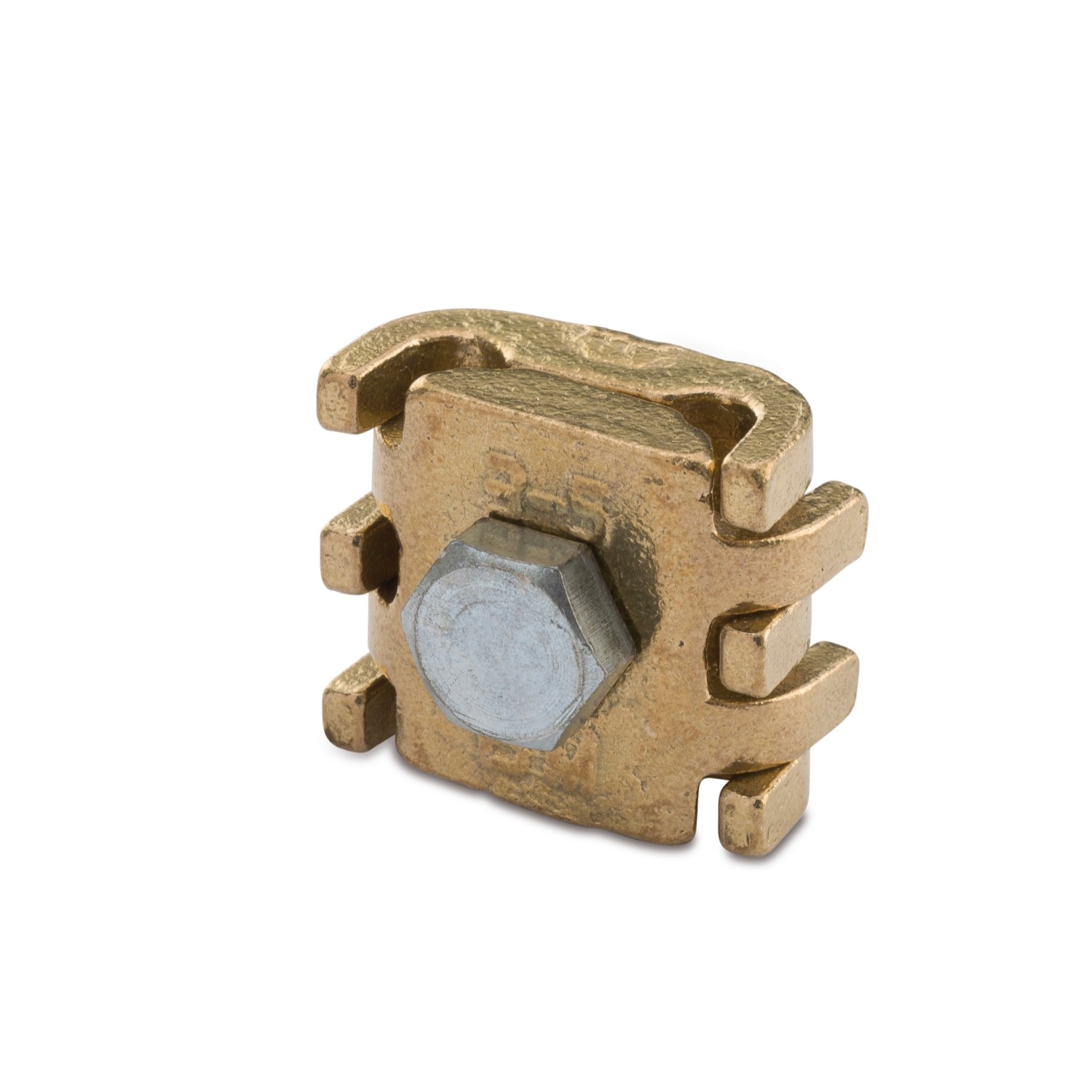

UNIVERSAL 1-BOLT COMB LUGS

UNIVERSAL 2-BOLT COMB LUGS

Product Category	universal comb lugs
Material	die-cast brass
Section	main and derived conductor of the same section
Operating temperature	from -50 °C to +150 °C
Applications	grounding systems, to connect copper wire ropes or copper conductors suitable for earthing
Etim 9	EC001062
cid	22CA01A

Images with
dimensions

Coded items

Item Code	Section [mm²]	Cable diameter [mm]	Screw	W1 [mm]	L1 [mm]		Quantity per Wishlist
5251	6 ÷ 16	3 ÷ 5	M6	25,5	20,5	100/100
5252	25 ÷ 50	6 ÷ 8	M8	29,5	25	50/50
5253	50 ÷ 70	9 ÷ 12	M8	37,5	30	50/50
