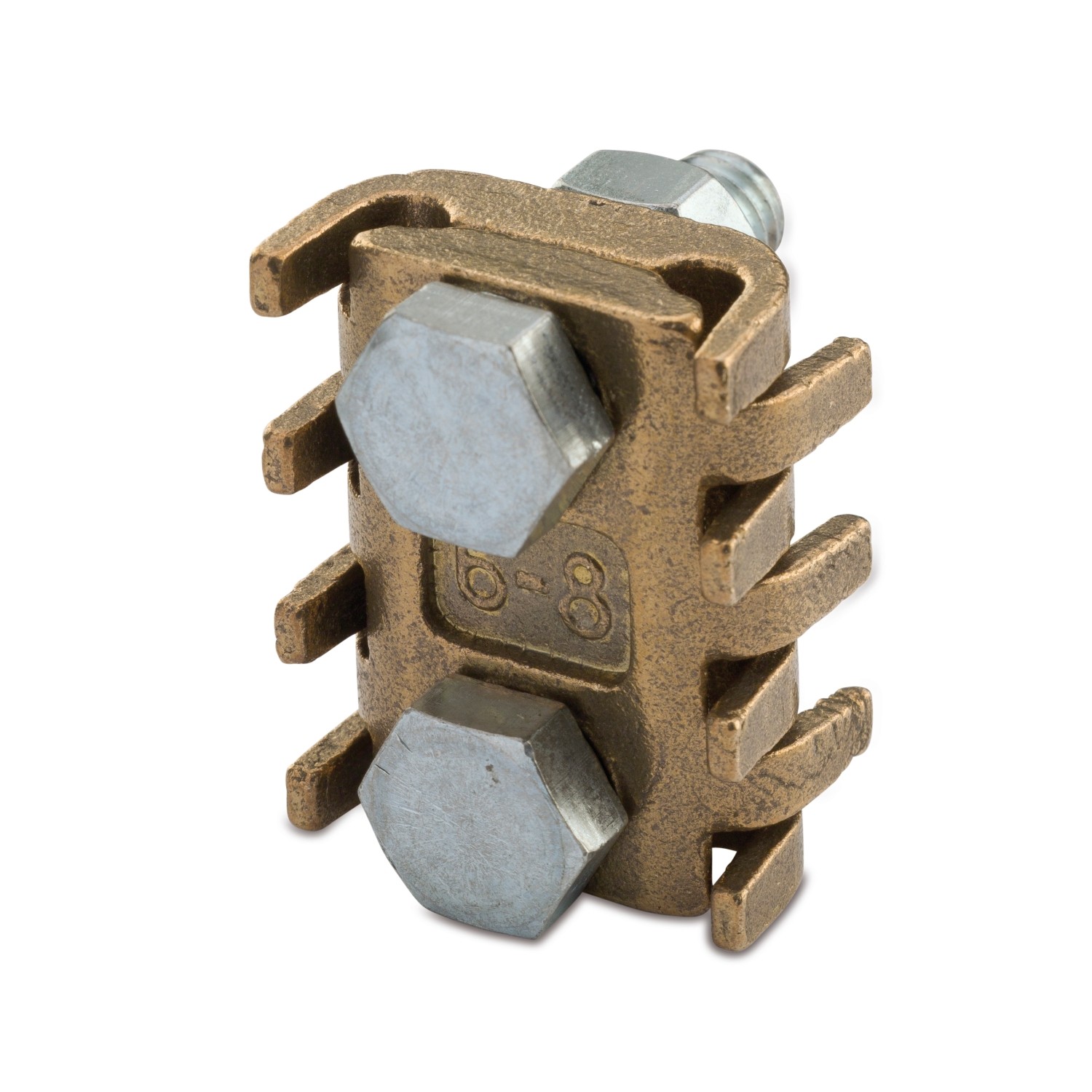

UNIVERSAL 2-BOLT COMB LUGS

Product was successfully added to your shopping cart.

UNIVERSAL 2-BOLT COMB LUGS

UNIVERSAL 1-BOLT COMB LUGS

Product Category	universal comb lugs
Material	die-cast brass
Section	main and derived conductor of the same or different section
Operating temperature	from -50 °C to +150 °C
Applications	grounding systems, to connect copper wire ropes or copper conductors suitable for earthing
Etim 9	EC001062
cid	22CA01B

Images with
dimensions

Coded items

Item Code	Section [mm²]	Cable diameter [mm]	Screw	W1 [mm]	L1 [mm]		Quantity per Wishlist
5261	6 ÷ 16	3 ÷ 5	M6	25	32	100/100
5262	25 ÷ 50	6 ÷ 8	M8	32	38	100/100
5263	50 ÷ 70	9 ÷ 12	M8	42	45	50/50
5264	70 ÷ 95	12 ÷ 14	M10	53	53	25/25
5265	95 ÷ 150	14 ÷ 16	M10	54,5	57,5	20/20
5266	150 ÷ 300	16 ÷ 22	M12	66	67	10/10
