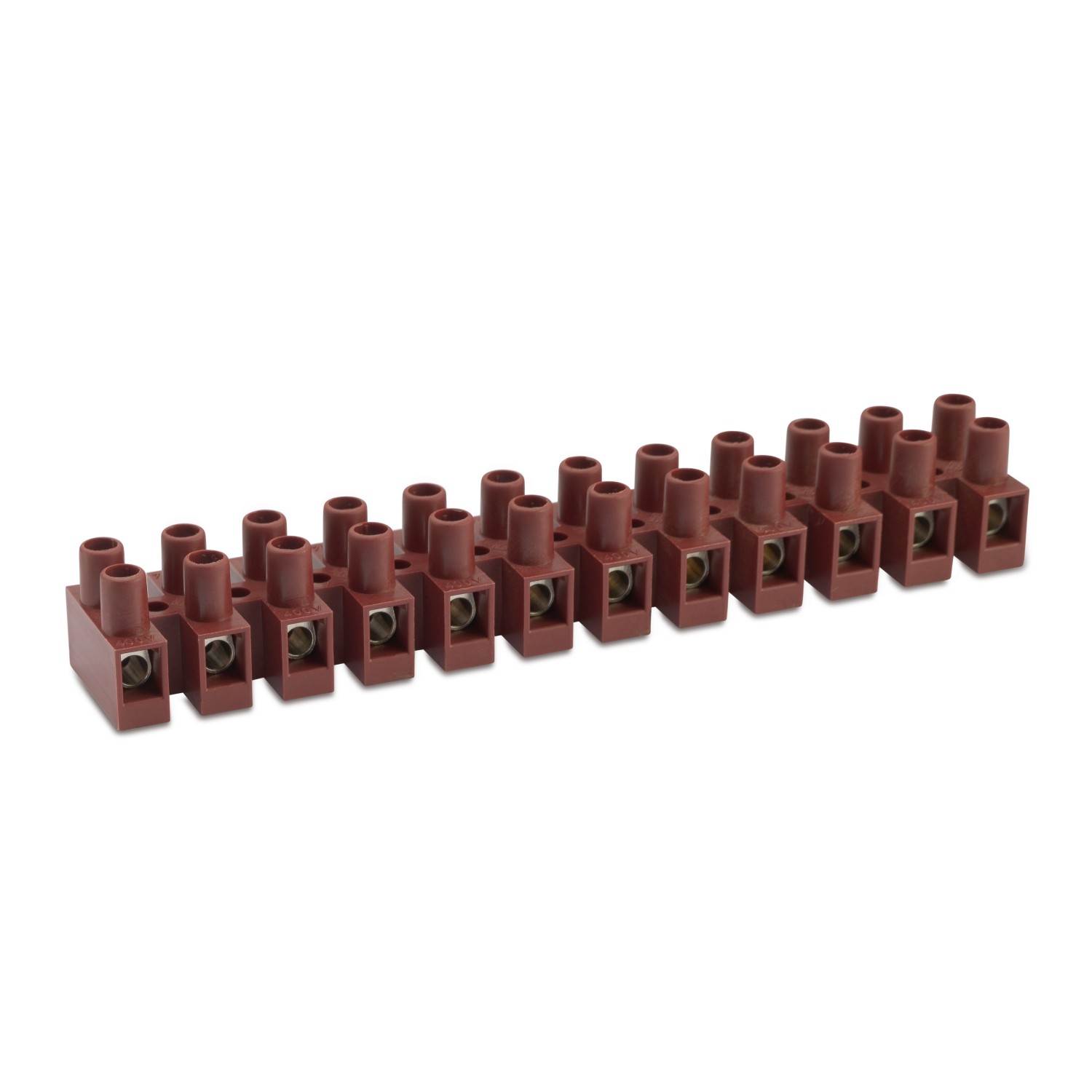

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M094 SERIES WITH FIBERGLASS

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M093H SERIES WITH FIBERGLASS AND WIRE PROTECTION

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M094 SERIES WITH FIBERGLASS AND WIRE PROTECTION

High temperature version of the M094 series

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3,5)
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
Stripping length	7.5 mm
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MA06C

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	6	-	400	41	140	0,7
	-	18-10	600	30 (*)	110	0,9

* 40 A rated for Factory Wiring Only

file n° E 70156

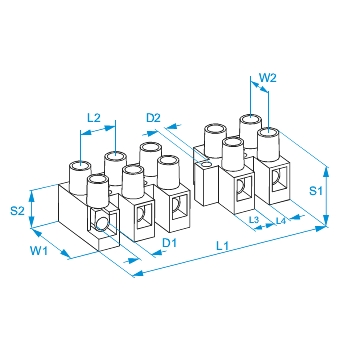

Images with
dimensions

Coded items

Item Code	Ways	Color	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	S2 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
94GF1	1	Brown	7,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF2	2	Brown	19,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF3	3	Brown	31,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF4	4	Brown	43,6 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF5	5	Brown	55,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF6	6	Brown	68 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF7	7	Brown	80 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF8	8	Brown	92 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF9	9	Brown	104 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF10	10	Brown	116 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GF11	11	Brown	128 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
M94GF	12	Brown	140 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	50/50
