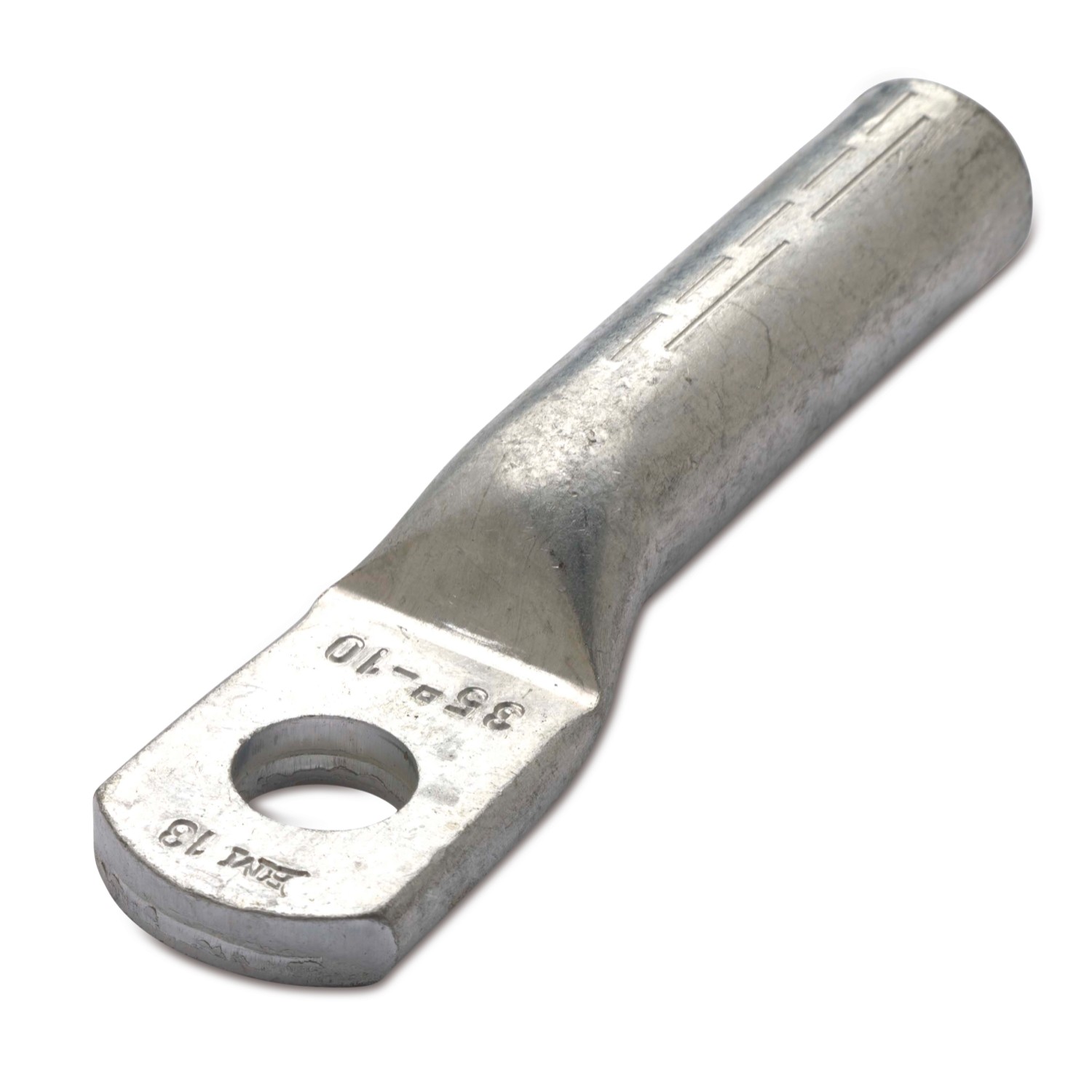

TERMINAL LUGS FOR ALUMINUM CONDUCTORS · UNINSULATED · DIN 48201

Product Category	terminal lugs
Terminal material	aluminum 1050 A EN573-3 with no less than 99.5% purity
Operating temperature	from -50 °C to +150 °C
Protection	the conductor housing is filled with grease (dropping point 90 °C) and plugged with a plastic cap to avoid oxidation.
Inspection hole	no
According to std.	DIN 48201
Etim 9	EC001053
cid	11TA07A

Images with
dimensions

Item Code	Conductor section no compacted circular or shaped [mm²]	Conductor compacted circular section [mm²]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	
76016	16	25	8	5/16"	12	18	66	33,5	12,5	12,5	12	5,8	8,5	25/25
76017	16	25	10	3/8"	12	18	66	33,5	12,5	12,5	12	5,8	10,5	25/25
76025	25	35	8	5/16"	12	18	72,5	40	12,5	12,5	12	6,8	8,5	25/25
76026	25	35	10	3/8"	12	18	72,5	40	12,5	12,5	12	6,8	10,5	25/25
76035	35	50	10	3/8"	13	21	80	44	14	13	14	8	10,5	25/25
76036	35	50	12	1/2"	13	21	80	44	14	13	14	8	13	25/25
76050	50	70	10	3/8"	15	25	86	46	15	14	16	9,8	10,5	25/25
76051	50	70	12	1/2"	15	25	86	46	15	14	16	9,8	13	25/25
76070	70	95	10	3/8"	20	28	101	54	16	14	18,5	11,2	10,5	25/25
76071	70	95	12	1/2"	20	28	101	54	16	14	18,5	11,2	13	25/25
76095	95	120	10	3/8"	21	32	105	57	16	14	22	13,2	10,5	25/25
76096	95	120	12	1/2"	21	32	105	57	16	14	22	13,2	13	25/25
76097	95	120	16	5/8"	21	34	110	57	19	16	22	13,2	17	25/25
76120	120	150	12	1/2"	22	34	108	59	18	17	23	14,7	13	25/25
76121	120	150	16	5/8"	22	34	108	59	18	17	23	14,7	17	25/25
76150	150	185	12	1/2"	25	35	120	64	19	17	25	16,3	13	10/10
76151	150	185	16	5/8"	25	35	120	64	19	17	25	16,3	17	10/10
76152	150	185	20	3/4"	25	35	126	64	22	20	25	16,3	21	10/10
76185	185	240	12	1/2"	28	40	127	64	24,5	21	28,5	18,3	13	10/10
76186	185	240	16	5/8"	28	40	127	64	24,5	21	28,5	18,3	17	10/10
76187	185	240	20	3/4"	28	40	127	64	24,5	21	28,5	18,3	21	10/10
76240	240	300	12	1/2"	32	45	140	70	25	24	32	21	13	10/10
76241	240	300	16	5/8"	32	45	140	70	25	24	32	21	17	10/10
76242	240	300	20	3/4"	32	45	140	70	25	24	32	21	21	10/10
