BUTT CONNECTORS · NYLON INSULATED

BUTT CONNECTORS · PVC INSULATED

BUTT CONNECTORS · WITH HEAT SHRINKING INSULATION

Product Category	butt connectors
Terminal material	tinned copper
Insulation material	polyamide (PA6.6)
Insulation self-extinguishing grade	UL 94 V2
Operating temperature	105 °C max
Max rated voltage	300 V

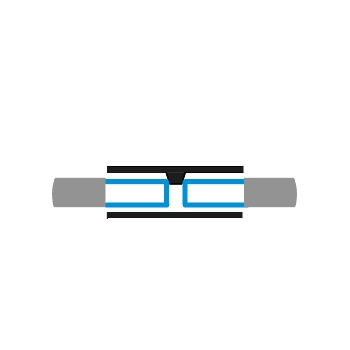

Type	with central flush for a right insertion of the conductor.
Etim 9	EC001059
cid	11TF02C

* file n° E 137735

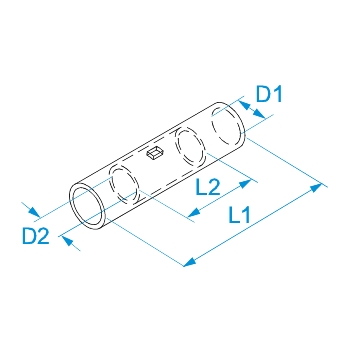

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
80160*	Red	0.25 ÷ 1.5	(22 - 16)	26	15	3,4	1,7	100/1000
80260*	Blue	1.5 ÷ 2.5	(16 - 14)	27	15	4,1	2,4	100/1000
80360*	Yellow	4 ÷ 6	(12 - 10)	28	15	5,6	3,6	50/500
80460	Black	10	(8)	43	26	8,2	4,8	100/100
80560	Black	16	(6)	46	29	9	6	100/100
80660	Black	25	(4)	46	29	11,5	7	100/100
