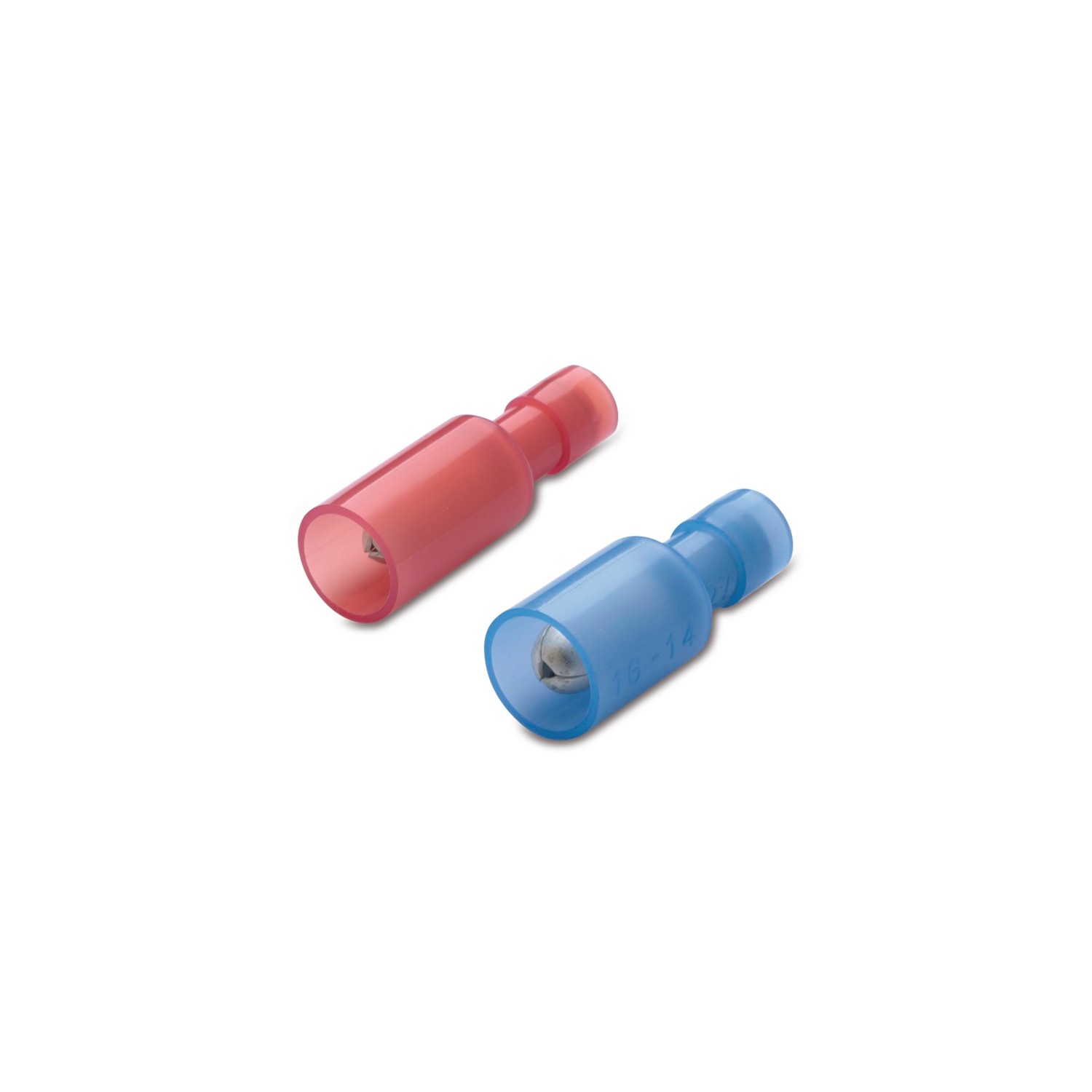

CYLINDER PLUG · NYLON INSULATED AND ANTI-VIBRATING · MALE

Product was successfully added to your shopping cart.

CYLINDER PLUG · NYLON INSULATED AND ANTI-VIBRATING · MALE

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · FEMALE

CYLINDER PLUG · NYLON INSULATED AND ANTI-VIBRATING · FEMALE

Product Category	cilynder plug
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyamide (PA 6.6)
Operating temperature	105 °C max
Insulation self-extinguishing grade	UL 94 V2
Rated voltage	300V max
How to assemble	double crimping
Etim 9	EC000516
cid	11TE02B

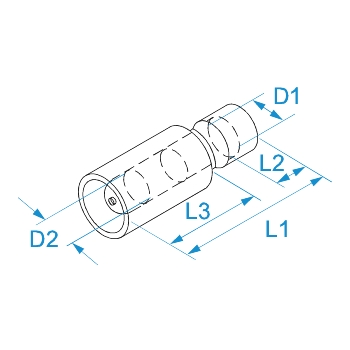

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
80130	Red	0.25 ÷ 1.5	(22 - 16)	24	11	9	4,2	4	50/500
80230	Blue	1.5 ÷ 2.5	(16 - 14)	24	11	9	4,8	5	50/500
