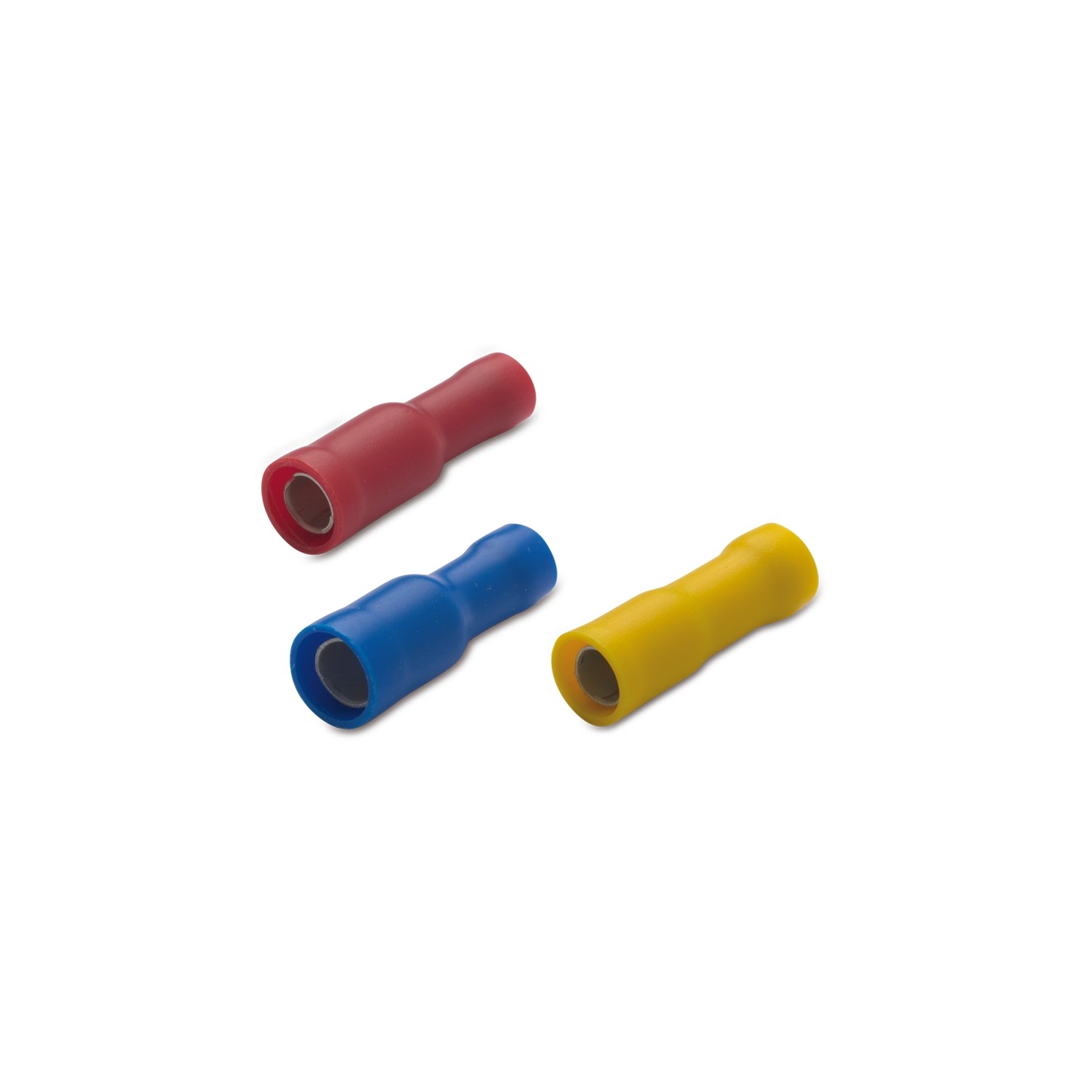

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · FEMALE

Previous

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · MALE

Previous

CYLINDER PLUG · NYLON INSULATED AND ANTI-VIBRATING · MALE

Product Categorycilynder plug
Terminal materialtinned brass
End-sleeve materialcopper
Insulation materialpolyvinylchloride (PVC)
Operating temperature75 °C max
Insulation self-extinguishing gradeUL 94 V0
Rated voltage300V max
How to assembledouble crimping
Etim 9EC000516
cid11TE01A
PDF documents

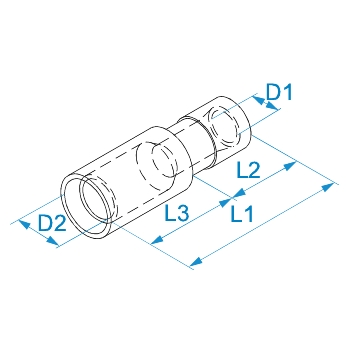

Images with
dimensions
Item
Code		 ColorSection
[mm²]		Section
[AWG/MCM]		L1
[mm]		L2
[mm]		L3
[mm]		D1
[mm]		D2
[mm]		 Quantity per
Wishlist
00140* Red0.25 ÷ 1.5(22 - 16)23,59,58,43,84100/1000
00240* Blue1.5 ÷ 2.5(16 - 14)23,59,58,74,3550/500
00244* Blue1.5 ÷ 2.5(16 - 14)23,59,58,74,3450/500
00340 Yellow4 ÷ 6(12 - 10)25128,26,2550/500
