PDF documents
Images with

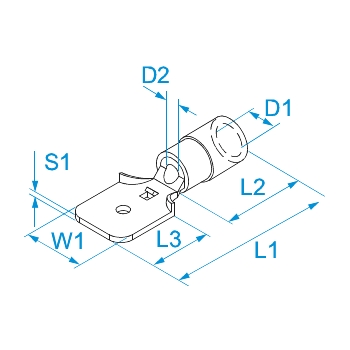

dimensions
dimensions
| Item Code |
Color | Section[mm²] | Section[AWG/MCM] | Male[mm] | Male["] | W1[mm] | L1[mm] | L2[mm] | L3[mm] | D1[mm] | D2[mm] | S1[mm] | | Quantity per Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00180 | Red | 0.25 ÷ 1.5 | (22 - 16) | 6.3 x 0.8 | 0.250x0.032 | 6,3 | 21 | 10 | 8 | 3,8 | 1,9 | 0,8 | 100/1000 | |
| 00280 | Blue | 1.5 ÷ 2.5 | (16 - 14) | 6.3 x 0.8 | 0.250x0.032 | 6,3 | 21 | 10 | 8 | 4,3 | 2,4 | 0,8 | 100/1000 | |
| 00380 | Yellow | 4 ÷ 6 | (12 - 10) | 6.3 x 0.8 | 0.250x0.032 | 6,3 | 24,5 | 13,5 | 8 | 6 | 3,5 | 0,8 | 50/500 |
