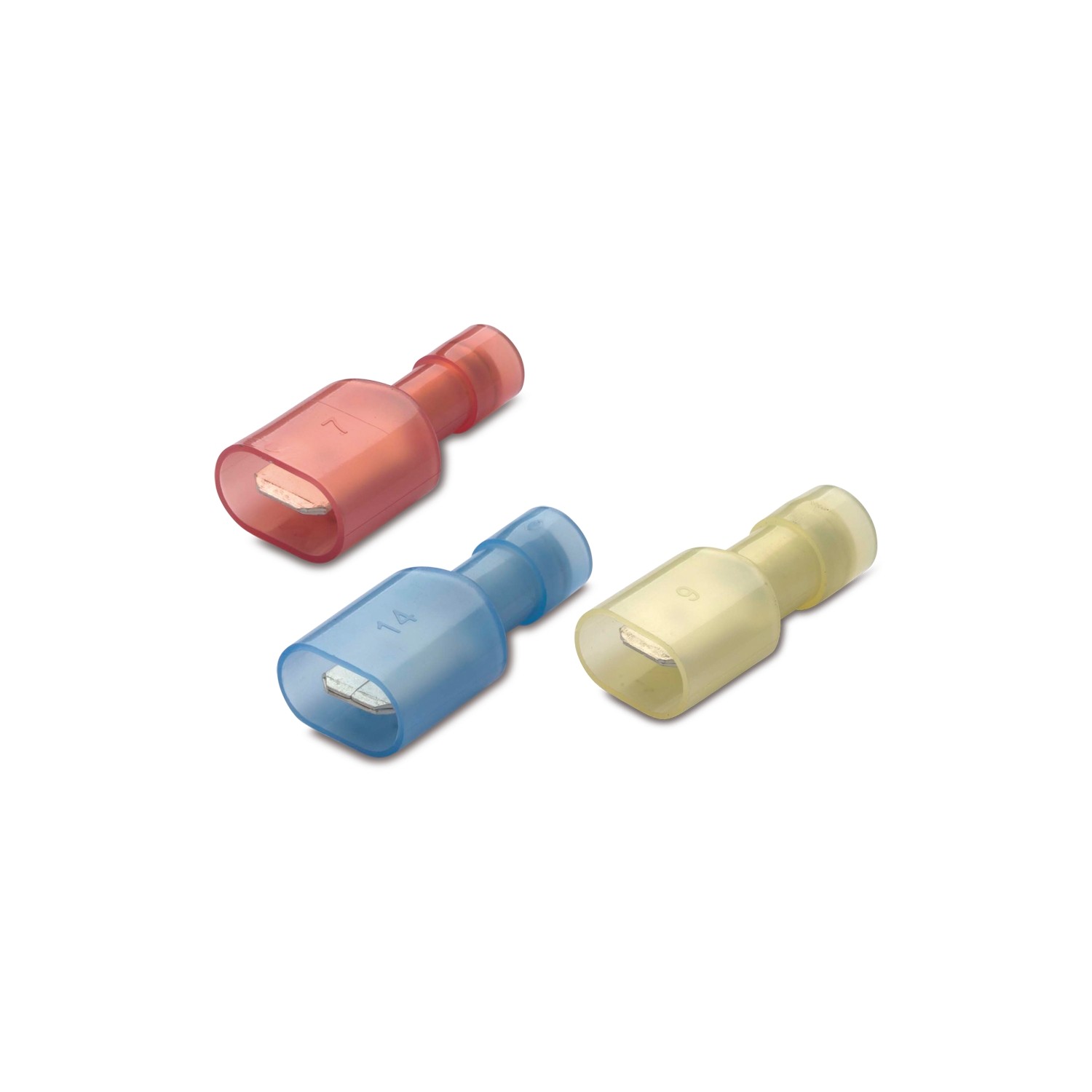

QUICK-CONNECT TERMINALS · NYLON INSULATED AND ANTI-VIBRATING · TOTALLY INSULATED MALE

Product was successfully added to your shopping cart.

QUICK-CONNECT TERMINALS · NYLON INSULATED AND ANTI-VIBRATING · TOTALLY INSULATED MALE

QUICK-CONNECT TERMINALS · PVC INSULATED AND ANTI-VIBRATING · MALE

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · MALE

Product Category	quick-connect terminals
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyamide (PA 6.6)
Operating temperature	105 °C max
Insulation self-extinguishing grade	UL 94 V2
Rated voltage	300V max
How to assemble	double crimping
Etim 9	EC000516
cid	11TD03G

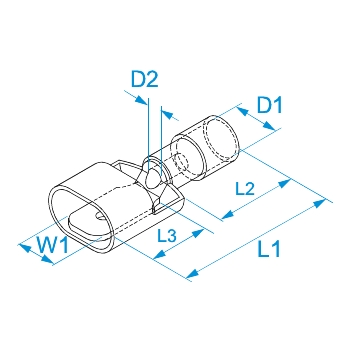

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG]	Male [mm]	Male ["]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
80180	Red	0.25 ÷ 1.5	(22 - 16)	6.3 x 0.8	0.250x0.032	6,3	23	11	8	3,8	1,9	100/1000
80280	Blue	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	6,3	23	11	8	3,8	1,9	50/500
80380	Yellow	4 ÷ 6	(12 - 10)	6.3 x 0.8	0.250x0.032	6,3	26	13	8	6	3,5	50/500
