TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED FROM SHEET · ROUND PIN

Product was successfully added to your shopping cart.

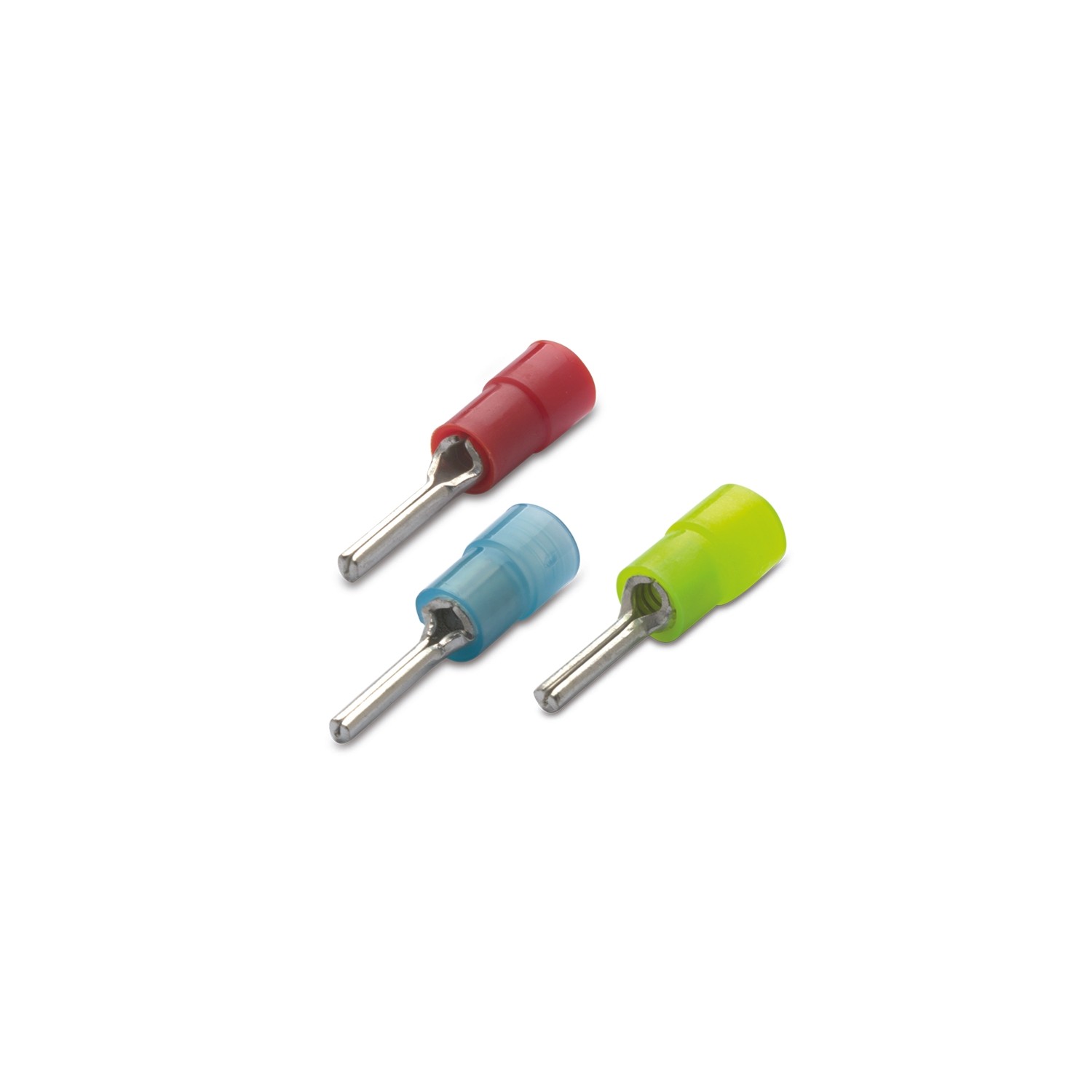

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED FROM SHEET · ROUND PIN

TERMINAL LUGS FOR COPPER CONDUCTORS · PVC INSULATED AND ANTI-VIBRATING FROM SHEET · ROUND PIN

TERMINAL LUGS FOR COPPER CONDUCTORS · PVC INSULATED FROM SHEET · BLADE PIN

Product Category	terminal lugs
Terminal material	tinned copper
Insulation material	polyamide (PA 6.6)
Insulation self-extinguishing grade	UL 94 V2
Rated voltage	300 V max
Operating temperature	105 °C max
Etim 9	EC001052
cid	11TB03C

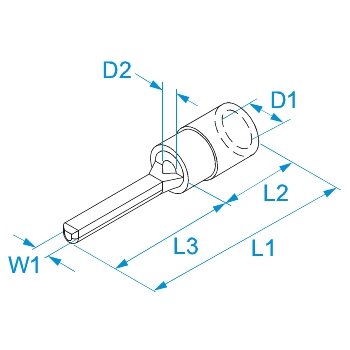

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
80150	Red	0.25 ÷ 1.5	(22 - 16)	1,8	22	10,4	12	4,2	1,95	100/1000
80250	Blue	1.5 ÷ 2.5	(16 - 14)	1,8	23	11	12	4,8	2,45	100/1000
80350	Yellow	4 ÷ 6	(12 - 10)	2,6	28	14	14	6,6	3,6	100/1000
