TERMINAL LUGS FOR COPPER CONDUCTORS · PVC INSULATED AND ANTI-VIBRATING FROM SHEET · ROUND PIN

Previous

TERMINAL LUGS FOR COPPER CONDUCTORS · PVC INSULATED FROM SHEET · ROUND PIN

Previous

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED FROM SHEET · ROUND PIN

Product Categoryterminal lugs
Terminal materialtinned copper
End-sleeve materialcopper
Insulation materialpolyvinylchloride (PVC)
Insulation self-extinguishing gradeUL 94 V0
Rated voltage300 V max
Operating temperature75 °C max
Assemblingdouble crimping
Etim 9EC001052
cid11TB02C
PDF documents

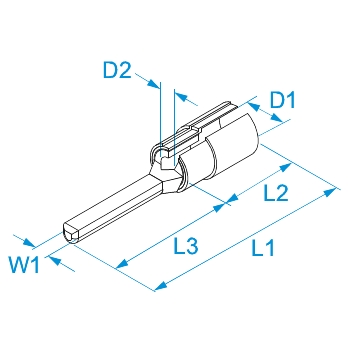

Images with
dimensions
Item
Code		 ColorSection
[mm²]		Section
[AWG/MCM]		W1
[mm]		L1
[mm]		L2
[mm]		L3
[mm]		D1
[mm]		D2
[mm]		 Quantity per
Wishlist
90150 Red0.25 ÷ 1.5(22 - 16)1,92210124,41,7100/1000
90151 Red0.25 ÷ 1.5(22 - 16)1,9191094,41,7100/1000
90250 Blue1.5 ÷ 2.5(16 - 14)1,92210952,4100/1000
90251 Blue1.5 ÷ 2.5(16 - 14)1,91910952,4100/1000
90350 Yellow4 ÷ 6(12 - 10)2,72814146,73,650/500
