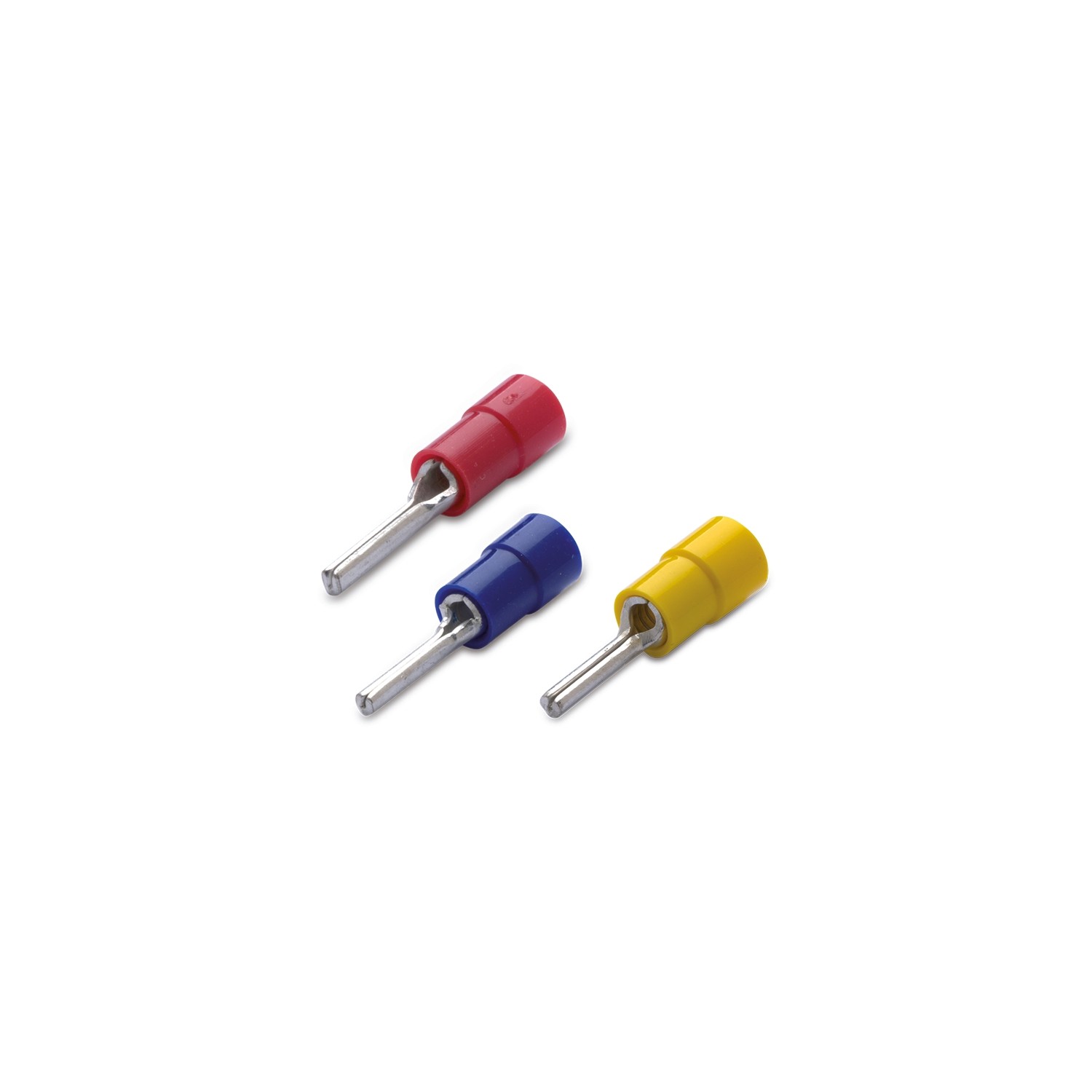

TERMINAL LUGS FOR COPPER CONDUCTORS · PVC INSULATED FROM SHEET · ROUND PIN

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED FROM SHEET · FORK

TERMINAL LUGS FOR COPPER CONDUCTORS · PVC INSULATED AND ANTI-VIBRATING FROM SHEET · ROUND PIN

Product Category	terminal lugs
Terminal material	tinned copper
Insulation material	polyvinylchloride (PVC)
Insulation self-extinguishing grade	UL 94 V0
Rated voltage	300 V max
Operating temperature	75 °C max
According to std.	UL 486 A-B
Etim 9	EC001052
cid	11TB01C

E-B170 (0,5-1,5 mm²)E-B171 (1,5-2,5 mm²)E-B172 (4-6 mm²)

file n° E 137735

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
00150	Red	0.25 ÷ 1.5	(22 - 16)	1,8	22,4	10,4	12	4,2	1,95	100/1000
00151	Red	0.25 ÷ 1.5	(22 - 16)	1,8	20	10,4	9	4,2	1,95	100/1000
00250	Blue	1.5 ÷ 2.5	(16 - 14)	1,8	23	11	12	4,8	2,45	100/1000
00251	Blue	1.5 ÷ 2.5	(16 - 14)	1,8	20	11	9	4,8	2,45	100/1000
00350	Yellow	4 ÷ 6	(12 - 10)	2,6	28	14	14	6,6	3,5	50/500
