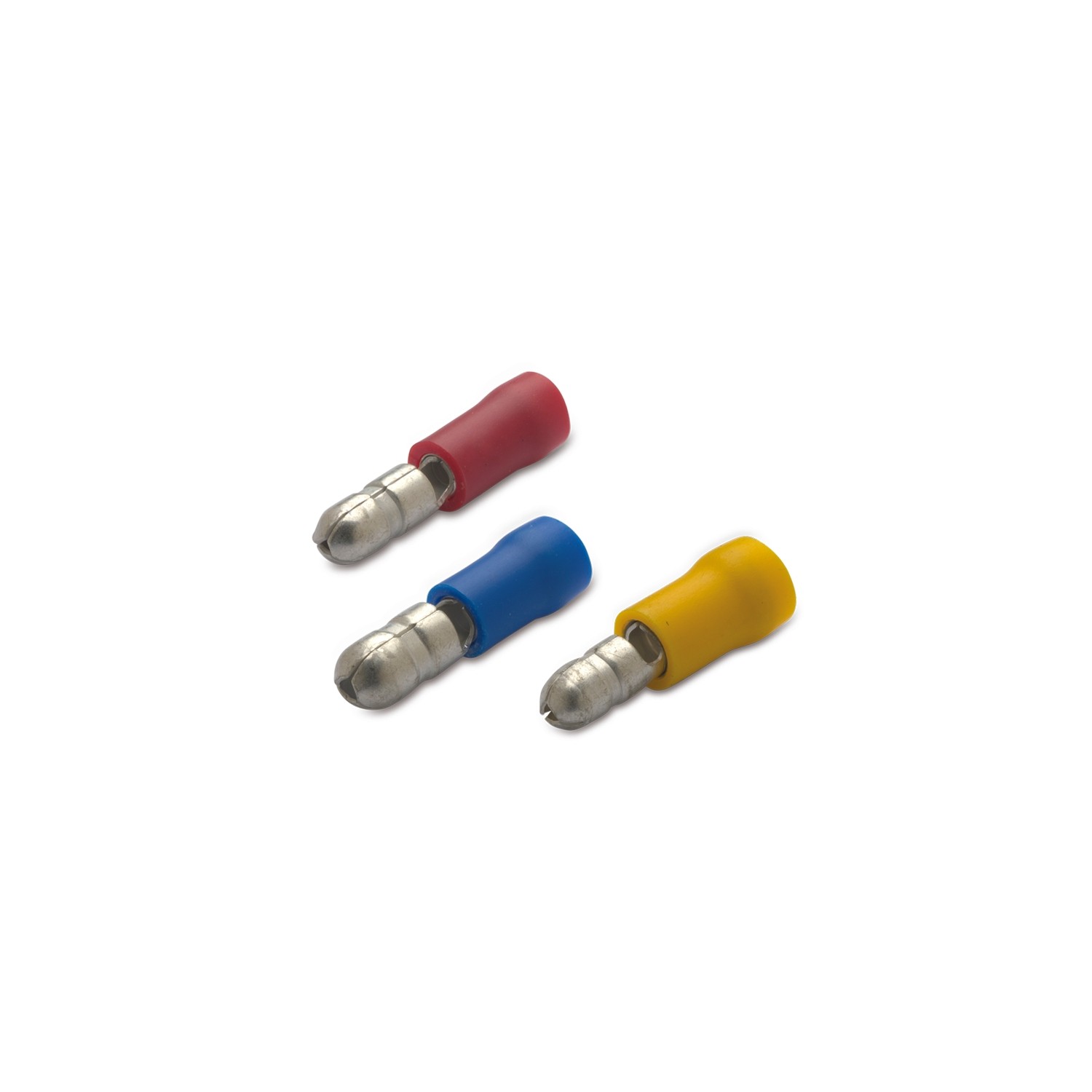

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · MALE

Product was successfully added to your shopping cart.

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · MALE

QUICK-CONNECT TERMINALS · NYLON INSULATED AND ANTI-VIBRATING · TOTALLY INSULATED MALE

CYLINDER PLUG · PVC INSULATED AND ANTI-VIBRATING · FEMALE

Product Category	cilynder plug
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
Operating temperature	75 °C max
Insulation self-extinguishing grade	UL 94 V0
Rated voltage	300V max
How to assemble	double crimping
Etim 9	EC000516
cid	11TE01B

* file n° E 137735

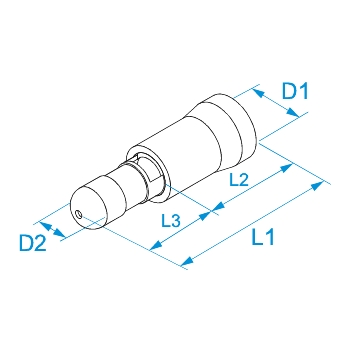

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
00130*	Red	0.25 ÷ 1.5	(22 - 16)	21	10	8,7	5,5	4	100/1000
00230*	Blue	1.5 ÷ 2.5	(16 - 14)	21	10	8,7	6	5	100/1000
00234*	Blue	1.5 ÷ 2.5	(16 - 14)	20,7	10	8,7	6	4	100/1000
00330	Yellow	4 ÷ 6	(12 - 10)	24,7	14	8,6	6,7	5	50/500
