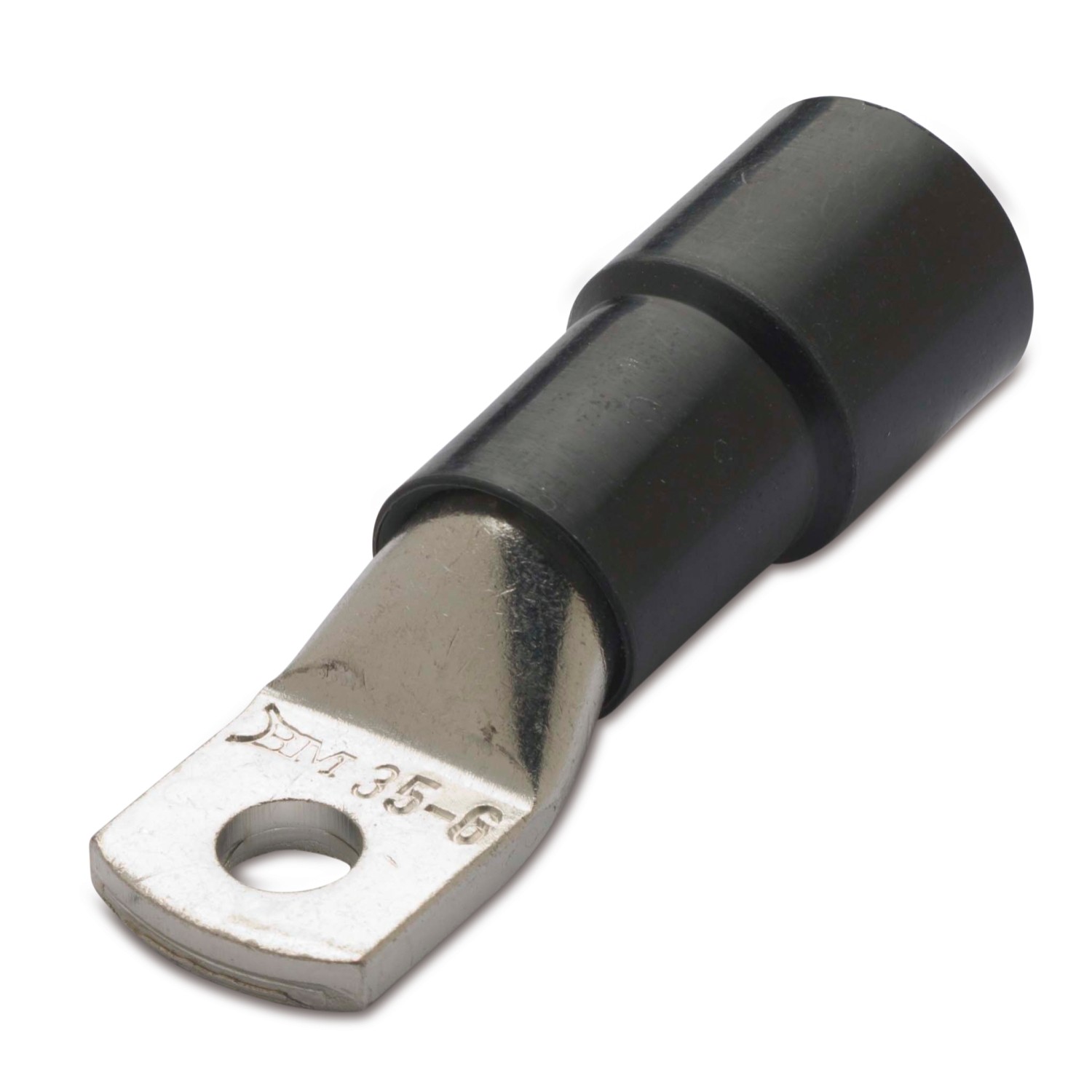

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · BLACK · SMALL PLATE

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · BLACK · CLASS 6

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · COLOURED

Product Category	terminal lugs
Terminal material	tinned copper
Insulation material	polyamide (PA 6.6)
Insulation self-extinguishing grade	UL 94 V0
Operating temperature	125 °C max
Applications	the reduced width of the palm allows connection to equipment with lugs of dimensions not suitable for standard terminals.
Inspection hole	no
Etim 9	EC001051
cid	11TB04C

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
917313	Black	35	(2)	6	#12	15	55	16	8	7	14	8,5	6,5	25/25
918313	Black	50	(1/0)	6	#12	15	58	18	8	7	15,5	10	6,5	25/25
918433	Black	50	(1/0)	10	3/8"	18,5	68	18	13,5	9,5	15,5	10	10,5	25/25
919313	Black	70	(2/0)	6	#12	17	67,5	20	9,5	6,5	18	12	6,5	25/25
919433	Black	70	(2/0)	10	3/8"	19	73,5	21	13	10	18	12	10,5	25/25
931373	Black	95	(3/0)	8	5/16"	19	76,5	24	12	8	19,5	13,8	8,5	25/25
931433	Black	95	(3/0)	10	3/8"	19	80,5	22	13	10	19,5	13,8	10,5	25/25
932373	Black	120	(4/0)	8	5/16"	19	83	22	12	9	21	15,5	8,5	25/25
932433	Black	120	(4/0)	10	3/8"	19	83	22	12	9	21	15,5	10,5	25/25
933373	Black	150	(300)	8	5/16"	19	93,5	30	17	9	23	17	8,4	25/25
933433	Black	150	(300)	10	3/8"	19	93,5	30	17	9	23	17	10,5	25/25
934493	Black	185	(400)	12	1/2"	31	110	32	17	14	26	19	13	25/25
935493	Black	240	(500)	12	1/2"	31,5	119	39	17	14	30	21,5	13	25/25
